FD60 Fire Doors & Frames

Engineered for 60 minutes of fire protection, our FD60 doors and frames combine robust security with elegant styling for complete peace of mind.

Enquire now

Quality product

Exceptional timber doors & joinery crafted with precision.

Sustainably made

Support your sustainability goals with locally-made FSC-certified products.

Assured safety

Industry-leading certification & knowledge you can count on.

On time, every time

Reliable on time delivery keeping your projects perfectly on track.

Single doors

Up to 44dB acoustic rating
Primary test evidence available
EPD available

Choose from our range of FD60 single-door assemblies with optional glazed fanlights, sidelights, solid side panels, overpanels, and matching cladding panels.

These doors feature a high-quality face finish with bespoke handcrafted real wood veneers or commercially available decorative laminates.

Designed to meet fire-rated standards, the product complies with BS 476-22 fire resistance regulations, providing 60 minutes of fire protection as a non-load-bearing system.

Technical Specifications

Fire performance

To BS 476-22, 60 minutes

Smoke control

To BS 476-31-1, 60 minutes

Acoustic performance

Up to 44dB

Sound reduction index Rw up to 44dB to BS EN ISO 717-1:2013

Structural performance

Severe Duty

Mechanical test to BS EN 1192, Class 4: Severe Duty Cycling test to BS EN 1191, Class 7: Heavy Duty

Embodied carbon

6.27 kg CO₂ eq/m²

6.27 kg CO₂ eq/m² without vision panel 7.63 kg CO₂ eq/m² with vision panel

Core

Average bulk density 520-620 kgs / m3

Range of timber-based cores with average bulk density 520-620 kgs / m3 Weight 54mm; Nom 34kgs / m2

Frame compatibility

Hardwood, MDF or steel

Warranty

10 years

Country of manufacture

United Kingdom

Sustainable sourcing

FSC® up to 70%

FSC® certified products available on request

Finishes

Wood veneer: Two coats high solid ultra violet (uv) cured lacquer, clear, 20% gloss / other. Veneer standards available: Ash/Cherry/Oak/St. Beech/Maple/American Black/Walnut/others (all available in FSC) Cut: Crown/Quarter/Rift/other. Match: Book/Random/Slip/Quarter/other. Grain direction: Vertical/Horizontal/Inlay/other. Laminate: to conform to EN 438 & ISO 4586. Primed: Forza primed coat (FPC) for painting by others. Painted: RAL, BS 4800, Pantone colors. Standard sheen 20% gloss

Request a quote

Customisation

Vision Panels

Choose from a range of FD60 approved vision panel designs, bespoke designs available on request.

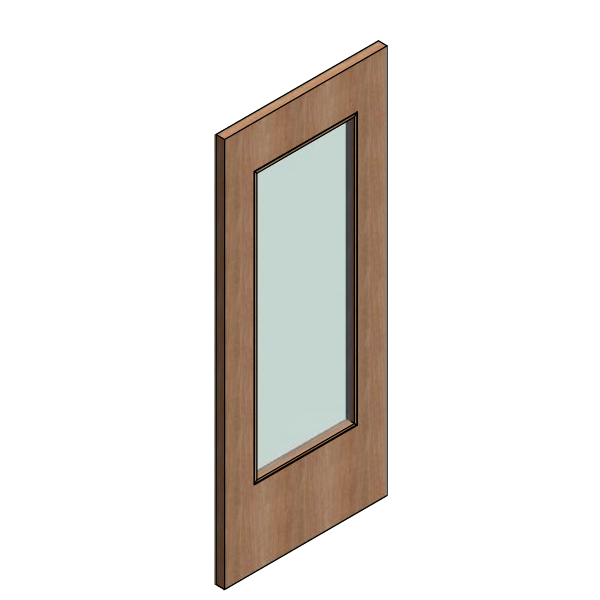

V10

See all FD60 vision panels

Frames

Forza FD60 frames are typically made from hardwood (Min density 640 Kg/m³) - excluding beech - and also available in MDF (min density 700 Kg/m³).

Whatever the material, we can perfectly match your doors to your frames for a seamless finish.

Delivery options: Available assembled, unassembled or pre-assembled and disassembled for transport purposes.

Profile: integral stop / loose stop / rebated / shadow gap

FD60 2-part timber shadow-gap doorframe

FD60 3-part timber doorframe

FD60 4-part timber doorframe

FD60 5-part split doorframe

FD60 double action doorframe

FD60 3-part panel stop doorframe

See all frames

Elevations

All FD60 door leaves are available with overhead overpanel or fanlights and/or sidelights, choose from any of the options below.

Single door

Single door with side leaf

Single door with overpanel

Single door with side panel and overpanel

Single door with glazed overpanel

Single door with side panel and glazed overpanel

Single door with glazed side panel

Single door with side leaf and glazed side panel

Ironmongery

Choose from one of the widest ranges of suitable ironmongery in the industry, all certified and approved for use with timber FD60 doors & frames.

Ironmongery compatibility check & guidance: we will check whether your ironmongery is compliant and advise if you need to make a change to your design.

Milling service: we offer machine-finished precise milling for all your locks, hinges, closers and more, be sure to include it in your quote request.

Concealed hinge

Central pivot closer

Concealed closer

Mortice locks

Double doors

Up to 44dB acoustic rating
Primary test evidence available
EPD available

Choose from our range of FD60 double-door assemblies with optional glazed fanlights, sidelights, solid side panels, overpanels, and matching cladding panels.

These doors feature a high-quality face finish with bespoke handcrafted real wood veneers or commercially available decorative laminates.

Designed to meet fire-rated standards, the product complies with BS 476-22 fire resistance regulations, providing 60 minutes of fire protection as a non-load-bearing system.

Technical Specifications

Fire performance

To BS 476-22, 60 minutes

Smoke control

To BS 476-31-1, 60 minutes

Acoustic performance

Up to 44dB

Sound reduction index Rw up to 44dB to BS EN ISO 717-1:2013

Structural performance

Severe Duty

Mechanical test to BS EN 1192, Class 4: Severe Duty Cycling test to BS EN 1191, Class 7: Heavy Duty

Embodied carbon

6.27 kg CO₂ eq/m²

6.27 kg CO₂ eq/m² without vision panel 7.63 kg CO₂ eq/m² with vision panel

Core

Average bulk density 520-620 kgs / m3

Range of timber-based cores with average bulk density 520-620 kgs / m3 Weight 54mm; Nom 34kgs / m2

Frame compatibility

Hardwood, MDF or steel

Warranty

10 years

Country of manufacture

United Kingdom

Sustainable sourcing

FSC® up to 70%

FSC® certified products available on request

Finishes

Request a quote

Customisation

Vision Panels

Choose from a range of FD60 approved vision panel designs, bespoke designs available on request.

V10

See all FD60 vision panels

Frames

Forza FD60 frames are typically made from hardwood (Min density 640 Kg/m³) - excluding beech - and also available in MDF (min density 700 Kg/m³).

Whatever the material, we can perfectly match your doors to your frames for a seamless finish.

Delivery options: Available assembled, unassembled or pre-assembled and disassembled for transport purposes.

Profile: integral stop / loose stop / rebated / shadow gap

FD60 2-part timber shadow-gap doorframe

FD60 3-part timber doorframe

FD60 4-part timber doorframe

FD60 5-part split doorframe

FD60 double action doorframe

FD60 3-part panel stop doorframe

See all frames

Elevations

All FD60 double door leaves are available with overhead overpanel or fanlights and/or sidelights, choose from any of the options below.

Double door

Double door with glazed side panel

Double door with glazed overpanel

Double door with overpanel

Ironmongery

Choose from one of the widest ranges of suitable ironmongery in the industry, all certified and approved for use with timber FD60 doors & frames.

Ironmongery compatibility check & guidance: we will check whether your ironmongery is compliant and advise if you need to make a change to your design.

Milling service: we offer machine-finished precise milling for all your locks, hinges, closers and more, be sure to include it in your quote request.

Concealed hinge

Central pivot closer

Concealed closer

Mortice locks

Designed for internal use, this product is approved under the IFC Field of Application report PAR/10896/01 for installation within timber, aluminium, and steel frames. It is specifically suited for the UK interior fit-out construction industry.

Each Forza fire door is equipped with a unique IFCC label, providing a complete audit trail of its manufacture and certifying its fire integrity performance.

Vision panels are fitted with laminated glass to achieve FD60/0, FD60/30, FD60/60, and acoustic performance standards. Additional vision panel styles, including circular, Vistamatic, and rounded Slimline, are also available.

Popular Veneers & Finishes

Discover some of our most popular veneers and finishes, designed to suit every taste and enhance any space.

Niveus

Eucalyptus

Terracotta

F4161

American Black Walnut

Walnut

Albus

Ash

Artichoke

F0800

Reed Green

U599 PM

Piceus

Ash

Imber

Mulitilaminar (Oak)

Terra

Ash

Misty Blue

U502 ST9

Solid Cashmere Grey

U7021 ST9

Crown Cut Beech

Beech

Vesperi

Multilaminar (Poplar)

Aged Ash

F8844

Furvus

Ash

Alpino

F1040

White Elm

Elm

Browse all finishes

Get inspired

Discover endless possibilities in our design gallery, showcasing how quality materials and expert craftsmanship come together to create awesome spaces.

Ready to get started?

Get in touch today to discuss your project with our expert team.

Request a quote Discuss a project

FAQs

Get quick answers to the most commonly asked questions.

What are the minimum frame dimensions available with Forza FD60 door assemblies?

This may vary depending on the chosen ironmongery for the door assembly, however, the frame shall be always a minimum of 70mm depth by 32mm thick.

What type of structural wall can an FD60 Forza fire-rated door assembly can be installed in?

The supporting construction may be timber stud & frame or steel stud, head & base track, plasterboard partition (with plasterboard on both faces of the stud), masonry wall or Forza timber framed glazed partition, but shall be of a type that has been tested or assessed to provide in excess of 60 minutes fire resistance, at the required size, when incorporating FD60 timber door assembly openings.

If fitted into a proprietary demountable and relocatable partition system providing in excess of 60 minutes of fire resistance the method of forming the timber door assembly aperture must be as tested by the partition manufacturer.

Limitation of allowable elevations/leaf sizes and ironmongery as tested and specified by the partition manufacturer shall take total precedence over Forza data.

Can you cut aperture holes on a flush door leaf on-site?

Letterbox, door viewer, air transfer grills must be tested or otherwise approved for use with Forza fire-rated doors, they must be fitted fully in accordance with manufacturer instructions including all intumescent liners and cloaking grilles/beads.

Restrictions on the maximum size and placement of any aperture, in which must also be included in the total area permitted for apertures.

Note: the installation of such items in a door leaf may compromise its performance as a smoke control door assembly.

I need EN tested doors, are your doors EN tested?

At this moment Forza is only permitted to certify fire-rated door assemblies under BS 476: 22.

We are actively developing a scope of fire-rated products tested under EN 1634-1.

FD60 Permitted Leaf Sizes

Review permitted leaf sizes for FD60 doors and view or download the leaf size summary graph for each of the door configurations below.

FLUSH (or MDF) TIMBER FRAMES

Code LSASD Max HT 3167 Assoc W 916 Max W 1249 Assoc HT 2499
Code ULSASD Max HT 3105 Assoc W 898 Max W 1225 Assoc HT 2451
Code ULDASD Max HT 2464 Assoc W 768 Max W 1000 Assoc HT 2000
Code LSASD - o/p Max HT 2702 Assoc W 810 Max W 1080 Assoc HT 2161
Code ULSASD - o/p Max HT 2649 Assoc W 794 Max W 1059 Assoc HT 2119
Code LSADD Max HT 2869 Assoc W 970 Max W 1143 Assoc HT 2523
Code ULSADD Max HT 2841 Assoc W 961 Max W 1132 Assoc HT 2498
Code ULDADD Max HT 2236 Assoc W 825 Max W 972 Assoc HT 1944
Code LSADD - o/p Max HT 2446 Assoc W 775 Max W 988 Assoc HT 2059
Code ULSADD - o/p Max HT 2422 Assoc W 767 Max W 979 Assoc HT 2039

Code	Max HT	Assoc W	Max W	Assoc HT
LSASD	3167	916	1249	2499
ULSASD	3105	898	1225	2451
ULDASD	2464	768	1000	2000
LSASD - o/p	2702	810	1080	2161
ULSASD - o/p	2649	794	1059	2119
LSADD	2869	970	1143	2523
ULSADD	2841	961	1132	2498
ULDADD	2236	825	972	1944
LSADD - o/p	2446	775	988	2059
ULSADD - o/p	2422	767	979	2039

REBATED TIMBER FRAMES

Code LSASD Max HT 2446 Assoc W 775 Max W 935 Assoc HT 1962
Code ULSASD Max HT 2422 Assoc W 767 Max W 958 Assoc HT 1975
Code LSADD Max HT 2040 Assoc W 826 Max W 826 Assoc HT 2040
Code ULSADD Max HT 2040 Assoc W 826 Max W 826 Assoc HT 2040

Code	Max HT	Assoc W	Max W	Assoc HT
LSASD	2446	775	935	1962
ULSASD	2422	767	958	1975
LSADD	2040	826	826	2040
ULSADD	2040	826	826	2040

STEEL FRAMES

Code LSASD Max HT 2547 Assoc W 733 Max W 1003 Assoc HT 2007
Code ULSASD Max HT 2497 Assoc W 719 Max W 984 Assoc HT 1968
Code LSADD Max HT 2309 Assoc W 777 Max W 915 Assoc HT 2033
Code ULSADD Max HT 2286 Assoc W 769 Max W 896 Assoc HT 2013

Code	Max HT	Assoc W	Max W	Assoc HT
LSASD	2547	733	1003	2007
ULSASD	2497	719	984	1968
LSADD	2309	777	915	2033
ULSADD	2286	769	896	2013

FD60 Fire & Sound Max Permitted Leaf Sizes

Review permitted leaf sizes for fire & sound FD60 doors and view or download the leaf size summary graph for each configuration.

FD60 Flush Hardwood Frames

Code LSASD Max HT 2944 Assoc W 851 Max W 1162 Assoc HT 2324
Code LSASD - o/p Max HT 2901 Assoc W 839 Max W 1145 Assoc HT 2290
Code ULSASD Max HT 2887 Assoc W 835 Max W 1139 Assoc HT 2279
Code ULSASD - o/p Max HT 2844 Assoc W 823 Max W 1122 Assoc HT 2245
Code DASD Max HT 2781 Assoc W 851 Max W 1162 Assoc HT 2324
Code LSADD Max HT 2668 Assoc W 902 Max W 1063 Assoc HT 2346
Code LSADD - o/p Max HT 2591 Assoc W 876 Max W 1032 Assoc HT 2278
Code ULSADD Max HT 2641 Assoc W 893 Max W 1052 Assoc HT 2323
Code ULSADD - o/p Max HT 2565 Assoc W 867 Max W 1022 Assoc HT 2256

Code	Max HT	Assoc W	Max W	Assoc HT
LSASD	2944	851	1162	2324
LSASD - o/p	2901	839	1145	2290
ULSASD	2887	835	1139	2279
ULSASD - o/p	2844	823	1122	2245
DASD	2781	851	1162	2324
LSADD	2668	902	1063	2346
LSADD - o/p	2591	876	1032	2278
ULSADD	2641	893	1052	2323
ULSADD - o/p	2565	867	1022	2256

See all documents & downloads

Related Products

Explore more from our range of bespoke timber joinery.

Bespoke joineryBeautifully integrated timber schemes and matched components.

ScreensFire and non-fire rated screens with a range of designs.

PartitionsInnovative partitions with outstanding acoustic & structural performance.

WashroomsStunning visual continuity for commercial washroom spaces.

When you need quality and attention to detail, you need the right partners. Work with the best and the results speak for themselves. Great work and thanks for your support as always!

Steve Potter Owner, Form
Forza were selected as we have established a trusted relationship with them on our previous projects, based on their customer service and exceptional quality. We couldn’t be more proud of the end result, and to work with a fantastic forward thinking client.

Paul McArdle Director & Co-Founder, Imago Interiors
The craftsmanship of [Forza’s] timber doors is second to none, and the level of detail and precision made the installation process effortless and reinforced why we chose them.

Liam Greenhow Commercial Manager, Form
Forza's service and quality went above and beyond our expectations. After having trouble with another door manufacturer we approached Forza Doors and explained we had 8 weeks left on programme. The next day their Sales Manager was in my office and within 3 days all designs and door schedules were complete. Five weeks later all 43 bespoke doors were on site.

Paddy Tupper Project Manager, LG Building

Ready to get started?

Get in touch to request a quote or discuss a project.

Discuss a project Request a quote

Discover our recent projects

Important documents & specifications

FD60 Fire Doors & Frames

Technical Specifications

Customisation

Technical Specifications

Customisation

Popular Veneers & Finishes

Niveus

Terracotta

American Black Walnut

Albus

Artichoke

Reed Green

Piceus

Imber

Terra

Misty Blue

Solid Cashmere Grey

Crown Cut Beech

Vesperi

Aged Ash

Furvus

Alpino

White Elm

Get inspired

FAQs

FD60 Permitted Leaf Sizes

FD60 Fire & Sound Max Permitted Leaf Sizes

Related Products
