30-Minute Fire Screens

Engineered for 30-minute fire protection, our fire screens provide essential safety with contemporary design for any environment.

Enquire now
Quality product
Exceptional timber doors & joinery crafted with precision.
Sustainably made
Support your sustainability goals with locally-made FSC-certified products.
Assured safety
Industry-leading certification & knowledge you can count on.
On time, every time
Reliable on time delivery keeping your projects perfectly on track.
Single Glazed
  • 30 minute fire rating
  • Proven method of build
  • IFCC tamper-proof label

Forza's single-glazed timber-framed fire and acoustic screens meet the most demanding specifications.

Our standard elevations provide clear guidance on maximum fire glass dimensions for 30-minute integrity/insulation, while addressing British Standards and Building Control Regulations impact recommendations.

Tested to BS 476: Part 22: 1987, our screens comply with BS6180:2011 barrier recommendations and achieve "Severe Duty" structural performance (BS 5234: part 2 1992 Annexes A/C/E/F).

Designed for internal use, our fire screens are approved under the IFC Field of Application report PAR/11294/01 for installation within timber, softwood/hardwood/MDF frames. They are specifically suited for the UK interior fit-out construction industry.

Technical Specifications

Fire performance
To BS 476-22, 30 minutes
Smoke control
n/a
Acoustic performance
34 dB
Using 7mm Pyrobel FD30/0, providing 34dB Rw To BS EN ISO 717-1:2013
Structural performance
Severe Duty
Glass safety rating to BS6206 (BS EN12600) Glass code GFP7: Class C (3B3) Glass code GFP12: Class B (2B2) Glass code GFP16/GFP16MF: Class B (2B2) Glass code GFP20/GFP20MF: Class A (1B1) Glass code GFP25: Class A (1B1) All fire glasses recommended for use with Forza fire screens comply with the recommendations on class of safety glass to be used in critical locations as determined in table 1 of BS6262-4:2018 glazing for Buildings Part 4: Code of practice for safety related to human impact. Forza Timber Framed Screens tested in accordance with BS5234-2 (methods – Annex A/C/E/F) achieved performance levels summarised as grade requirement Severe Duty and comply with the recommended max deflection as a result of horizontal imposed loads detailed in BS6180-2011 Barriers in and about Buildings.
Embodied carbon
Not available
Sustainable sourcing
FSC® up to 70%
FSC® certified products available on request
Warranty
10 years
Country of manufacture
United Kingdom
Frame compatibility
Solid Softwood or Hardwood of minimum density 510kg/m3 or MDF Veneer wrap MDF of minimum density 700Kg/m3 edge lipped with 4-9mm hardwood timber
Timber quality and moisture content in accordance with BS EN 942: 2007 MDF Veneer wrap MDF of minimum density 700Kg/m3 edge lipped with 4-9mm hardwood timber. Moisture content in accordance with BS EN 942:2007
Perimeter liner
Minimum depth 79mm x minimum thickness 32mm (44mm with MDF)
Vertical mullions
Minimum depth 79mm x minimum thickness 44mm
Door mullion/frame & transoms
Minimum depth 79mm x minimum thickness 44mm (45mm with MDF)
Flush bead
Minimum depth > 27mm (to suit glass) x minimum thickness 27mm
Max screen size
Max. 4500mm high x 1200mm wide whole module
Any height of screen that exceeds 3000mm must include at least one transom. The number of transoms is limited by the approved glass pane sizes.
Max width run
Up to 6000mm
For runs longer than 6000mm, you must have a 200mm nib in between each run of 6000mm panes.
Modules limit
Max. 3000mm high x 1200mm wide single modules
If the fire screen is guarding, therefore protecting from a drop or fall over 200mm, or if there is a free path issue, the safety impact rating shall be minimum class 1 and limited to a maximum 1000mm wide module. Module widths must be equalised within 250mm of each other.
Request a quote

Customisation

Configurations

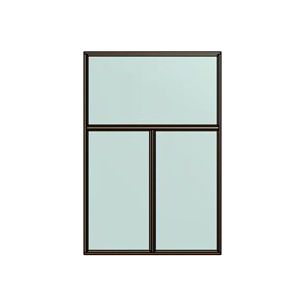

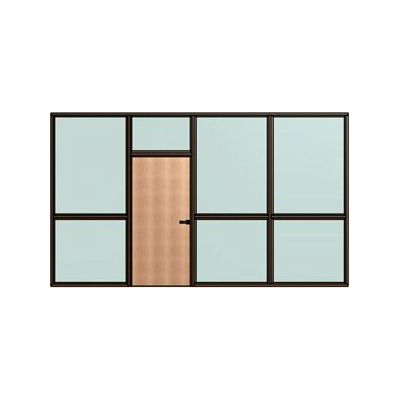

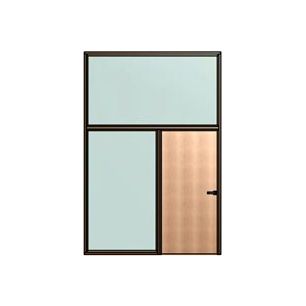

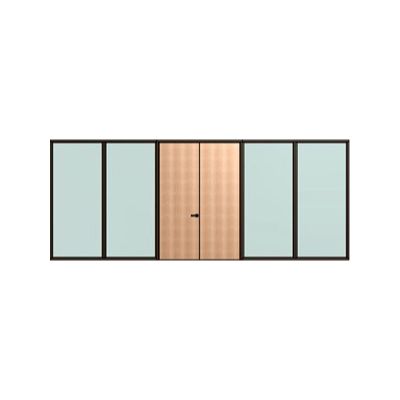

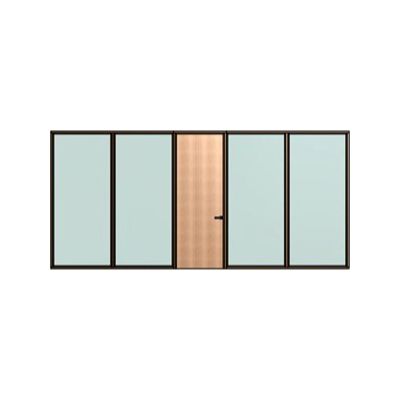

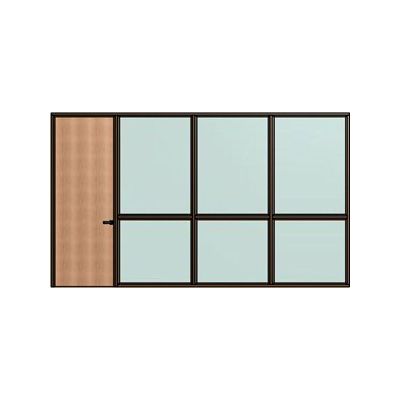

Our 30-minute fire-rated fire screens are available in a variety of configurations, choose from any of the options below. Or speak to us for something bespoke.
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:0 13Mm GFP13
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16

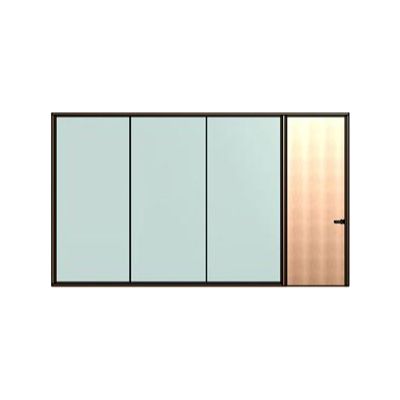

FD30:30 GFP16MF:GFP20MF
Bead & Liner
Pin fixing: 50mm (min) steel pins fixed at 25 degree angle at 200mm centres and 50 from corners Screw fixing: 50mm (min) steel screws fixed at 25 degree angle at 200mm centres and 50 from corners, countersunk and filled Please note: The FD30 Firescreen door mullion and transom liner is a minimum 79x44mm The Splayed Bead has a 15 degree angle from the top of the bead
FD30:0 Glass GFS6 60:0 Glass GFP7 30:0
FD30:30 Glass GFP16 60:30
FD30:0 Glass GFP12 60:0 Glass GFP13 30:0 Glass GFS12 60:30
Visionline Firescreen FD30:30 Glass GFP16 60:30
Glass
The following glass types are approved, with their respective maximum pane sizes, for use in the proposed screen assemblies. Pyrobelite 7 - FD30/0 Pyrobelite 12 - FD30/0 Pyrobelite 16 - FD30/30 Pyrobelite 16 EG - FD30/30 Pyrobelite 25 - FD30/30 But joined or Visionline is also permitted for use in the proposed screen assemblies. Pyrobelite 16 / 16EG / 25 - FD30/30
Twin Glazed
  • 30 minute fire rating
  • Proven method of build
  • IFCC tamper-proof label

Forza's twin-glazed timber-framed fire and acoustic screens meet the most demanding specifications.

The 30 minutes twin glazed design includes the fire resisting pane of glass offset to one side of the frame profile and a pane of non-fire resisting glass in the other glazing pocket creating an asymmetric construction, therefore the twin glazed option may only be included where the fire risk face can be identified, and the fire resiting glass must be installed nearer to the unexposed face. It is recommended that the perceived fire risk and one-sided application, is agreed with the Approving Authority.

Our standard elevations provide clear guidance on maximum fire glass dimensions for 30-minute integrity/insulation, while addressing British Standards and Building Control Regulations impact recommendations.

Tested to BS 476: Part 22: 1987, our screens comply with BS6180:2011 barrier recommendations and achieve "Severe Duty" structural performance (BS 5234: part 2 1992 Annexes A/C/E/F).

Designed for internal use, our fire screens are approved under the IFC Field of Application report PAR/11294/01 for installation within timber, softwood/hardwood/MDF frames. They are specifically suited for the UK interior fit-out construction industry.

Technical Specifications

Fire performance
To BS 476-22, 30 minutes
Smoke control
n/a
Acoustic performance
Not available
Structural performance
Severe Duty
Glass safety rating to BS6206 (BS EN12600) Glass code GFP7: Class C (3B3) Glass code GFP12: Class B (2B2) Glass code GFP16/GFP16MF: Class B (2B2) Glass code GFP20/GFP20MF: Class A (1B1) Glass code GFP25: Class A (1B1) All fire glasses recommended for use with Forza fire screens comply with the recommendations on class of safety glass to be used in critical locations as determined in table 1 of BS6262-4:2018 glazing for Buildings Part 4: Code of practice for safety related to human impact. Forza Timber Framed Screens tested in accordance with BS5234-2 (methods – Annex A/C/E/F) achieved performance levels summarised as grade requirement Severe Duty and comply with the recommended max deflection as a result of horizontal imposed loads detailed in BS6180-2011 Barriers in and about Buildings.
Embodied carbon
Not available
Sustainable sourcing
FSC® up to 70%
FSC® certified products available on request
Warranty
10 years
Country of manufacture
United Kingdom
Frame compatibility
Solid Softwood or Hardwood of minimum density 510kg/m3 or MDF Veneer wrap MDF of minimum density 700Kg/m3 edge lipped with 4-9mm hardwood timber
Timber quality and moisture content in accordance with BS EN 942: 2007 MDF Veneer wrap MDF of minimum density 700Kg/m3 edge lipped with 4-9mm hardwood timber. Moisture content in accordance with BS EN 942:2007
Perimeter liner
Minimum depth 150mm x minimum thickness 32mm (45mm with MDF) vertical
Vertical mullions
Minimum depth 150mm x minimum thickness 44mm (45mm with MDF)
Door mullion/frame & transoms
Minimum depth 150mm x minimum thickness 44mm (45mm with MDF)
Flush bead
Minimum depth > 27mm (to suit glass) x minimum thickness 27mm
Max screen size
Max. 4500mm high x 1200mm wide whole module
Any height of screen that exceeds 3000mm must include at least one transom. The number of transoms is limited by the approved glass pane sizes.
Max run length
Up to 6000mm
For runs longer than 6000mm, you'll need to have a min. 200mm nib in between each run of 6000mm panes.
Modules limit
Max. 3000mm high x 1200mm wide single modules
If the fire screen is guarding, therefore protecting from a drop or fall over 200mm, or if there is a free path issue, the safety impact rating shall be minimum class 1 and limited to a maximum 1000mm wide module. Module widths must be equalised within 250mm of each other.
Request a quote

Customisation

Configurations
Our 30-minute fire-rated fire screens are available in a variety of configurations, choose from any of the options below. Or speak to us for something bespoke.
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:0 13Mm GFP13
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 16Mm GFP16
FD30:30 GFP16MF:GFP20MF
Bead & Liner
Pin fixing: 50mm (min) steel pins fixed at 25 degree angle at 200mm centres and 50 from corners Screw fixing: 50mm (min) steel screws fixed at 25 degree angle at 200mm centres and 50 from corners, countersunk and filled Please note: The FD30 Firescreen door mullion and transom liner is a minimum 79x44mm The Splayed Bead has a 15 degree angle from the top of the bead
FD30:0 Glass GFS6 60:0 Glass GFP7 30:0
FD30:30 Glass GFP16 60:30
FD30:0 Glass GFP12 60:0 Glass GFP13 30:0 Glass GFS12 60:30
Visionline Firescreen FD30:30 Glass GFP16 60:30
Glass
The following glass types are approved, with their respective maximum pane sizes, for use in the proposed screen assemblies. Pyrobelite 7 - FD30/0 Pyrobelite 12 - FD30/0 Pyrobelite 16 - FD30/30 Pyrobelite 16 EG - FD30/30 Pyrobelite 25 - FD30/30 But joined or Visionline is also permitted for use in the proposed screen assemblies. Pyrobelite 16 / 16EG / 25 - FD30/30

Popular Veneers & Finishes

Discover some of our most popular veneers and finishes, designed to suit every taste and enhance any space.

Niveus

Eucalyptus

Terracotta

F4161

American Black Walnut

Walnut

Albus

Ash

Artichoke

F0800

Reed Green

U599 PM

Piceus

Ash

Imber

Mulitilaminar (Oak)

Terra

Ash

Misty Blue

U502 ST9

Solid Cashmere Grey

U7021 ST9

Crown Cut Beech

Beech

Vesperi

Multilaminar (Poplar)

Aged Ash

F8844

Furvus

Ash

Alpino

F1040

White Elm

Elm
Browse all finishes

Get inspired

Discover endless possibilities in our design gallery, showcasing how quality materials and expert craftsmanship come together to create awesome spaces.

  • Timber Doors & Screens at No. 1 Smart's Place, Covent Garden with GPL Projects
  • Timber Fire Door with Side Leaf & Lozenge Vision Panel at Uncommon Holborn | Pace Interiors
  • Timber Doors & Screens at No. 1 Smart's Place, Covent Garden with GPL Projects
  • Double Timber Fire Doors & Lozenge Vision Panels at Uncommon Holborn | Pace Interiors
  • Timber Doors & Screens at No. 1 Smart's Place, Covent Garden with GPL Projects
  • Eucalyptus Timber Doors at Sandbanks Luxury Homes | LG Building
  • Timber Door fitted into Glass Partition
  • Timber Washrooms at 1 Knightsbridge | HK Architects
  • Painted Timber Fire Doors at Uncommon Holborn | Pace Interiors
  • Timber & Glass Partition
  • Timber Doors at FORA Chancery House
  • Timber Doors & Screens at No. 1 Smart's Place, Covent Garden with GPL Projects
  • Timber Fire Door in Kitchen at Canopy Hilton Hotel
  • Timber Fire Door at Canopy Hilton Hotel
  • Timber Door & Screen at FORA Chancery House
Ready to get started?
Get in touch today to discuss your project with our expert team.
Request a quoteDiscuss a project

FAQs

Get quick answers to the most commonly asked questions.
What is the maximum height of a fire screen?

Maximum screen height is 4500mm from FFL, but when over 3000mm high, at least one transom member shall be specified.

Are architraves required on a twin glazed fire screen?

Hardwood architraves minimum 640kg/m3 are required to a minimum 45 x 15mm size

Is Forza able to mix approved fire glasses within the same fire screen elevation?

This is permitted as far as the fire glasses fall within the permitted option under Forza scope of fire rated approved glasses.

Can I have better acoustic rates using a twin glazed fire screen system?

Yes, this is one of the functions of a twin glazed system, the thicker the glass and inner cavity bead, the better the acoustic rating achieved.

Can Forza manufacture and certify offset fire-rated screens?

Yes, this is possible when adhering to the minimum 27mm wide bead size.

What is the o/a maximum run of fire-rated screens certified from Forza?

Maximum permitted run of 6000mm or 6000m partially divided by a minimum 200mm structural wall nib.
