The new FD60S Double Action Pivot Door
We're excited to announce our new product, the FD60S Double Action Pivot Door a breakthrough in fire and smoke door design.
Published 14 May 2026
The FD60S Double Action Pivot Door is a fully tested fire door with ingrained smoke control, designed to meet both performance and design expectations. Supporting double-door configurations, it gives sub-contractors, architects and designers the creative freedom to produce functional spaces while ensuring full compliance with British Standard requirements.

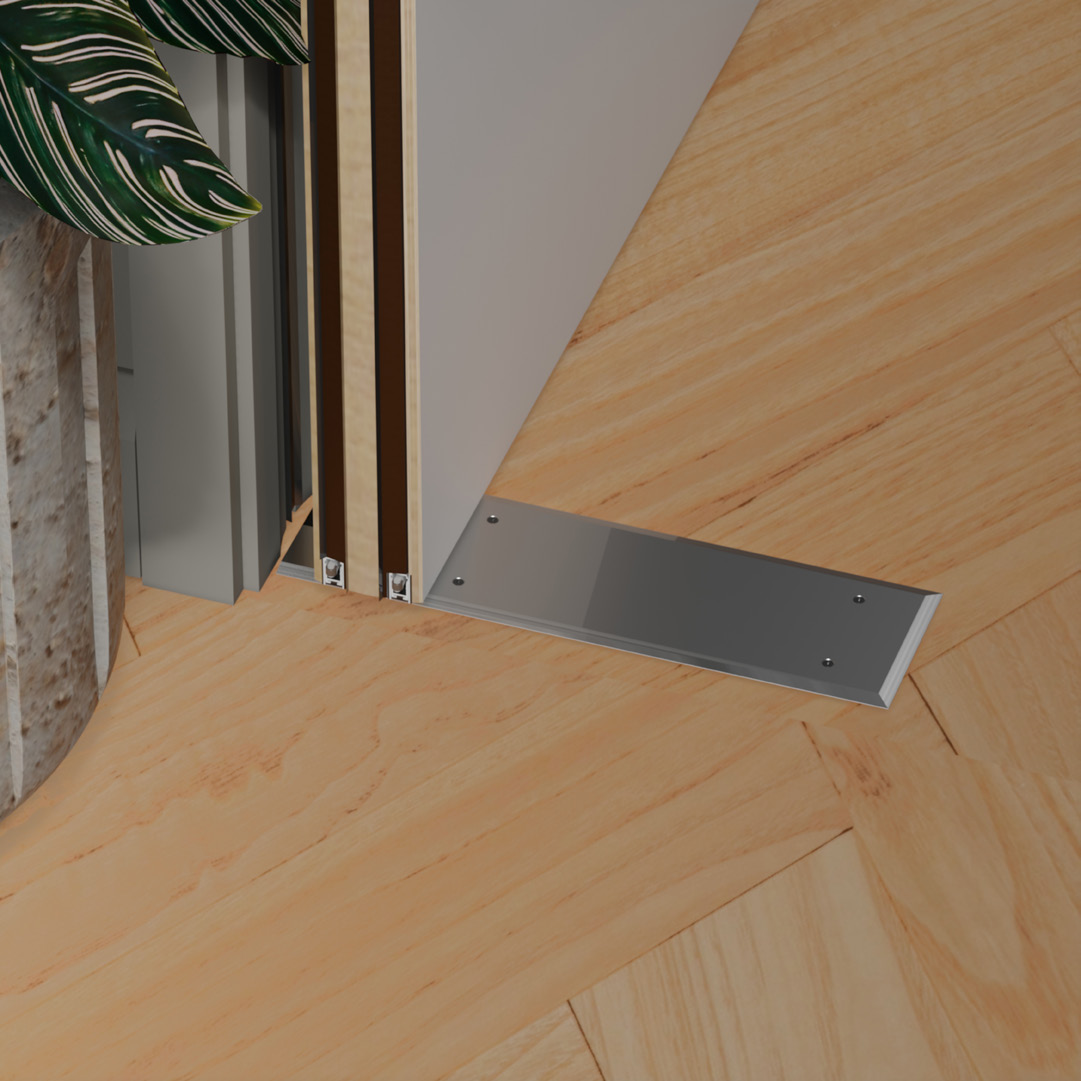

Pivot doors offer a sleek, modern aesthetic and a smooth, effortless swing, but they also pose unique challenges compared to traditional hinged doors. To overcome these, Forza developed a custom threshold seal system that ensures smooth operation while maintaining rigorous protection. The result is a double-action pivot door with fully tested fire and smoke performance, offering designers and specifiers a safe yet sophisticated solution.
Safety has been ingrained into every aspect of the design. The door achieves a 60-minute FD60 fire rating with ingrained smoke control, meaning it provides exceptional fire and smoke protection for up to an hour and fully certified to British Standards.

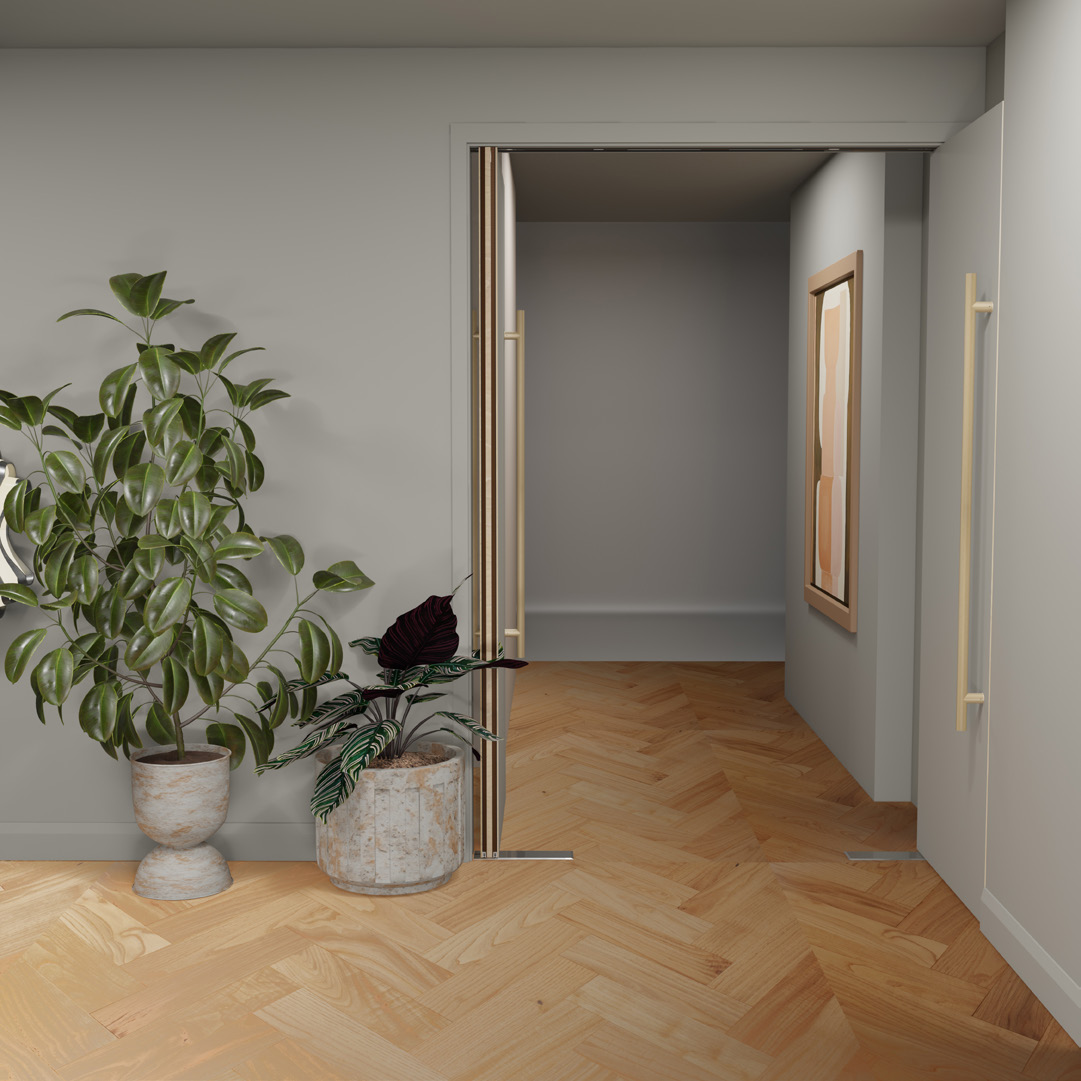

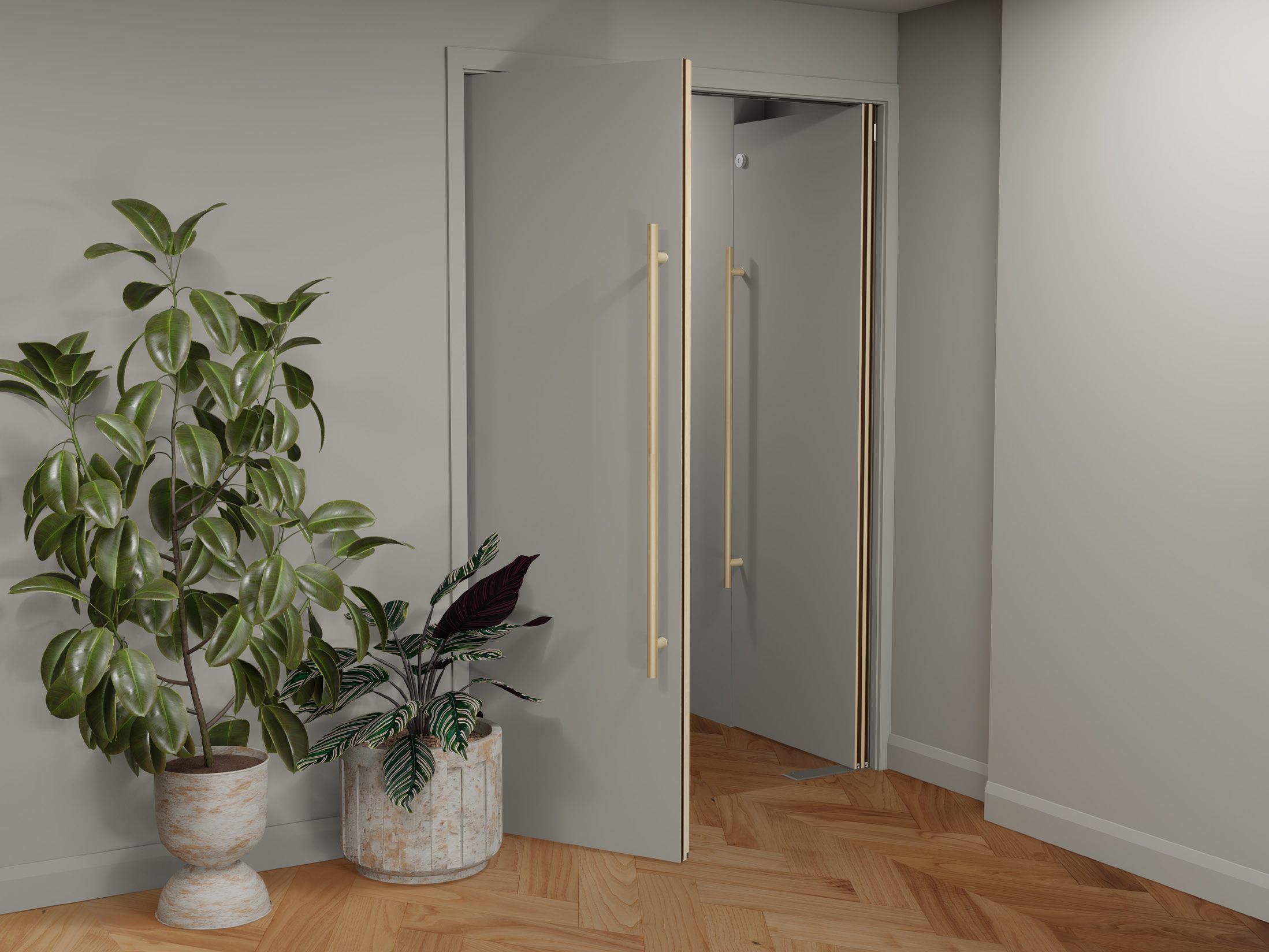

This innovative system delivers a modern aesthetic by supporting innovative, minimal corridor designs. The door’s pivot functionality allows it to sit flush with walls for a sleek, contemporary look, all without compromising on fire or smoke protection.
FAQs
What are the maximum door dimensions?
- Maximum height: 2490 mm
- Maximum width: 874 mm
Can the door include vision panels?
Yes, all FD60 vision panel configurations, using either hockey stick beads or flush quirk beads, are permitted up to a maximum glazed area of 1.06m² per door leaf.
The maximum permitted dimensions are:
- 1700mm maximum vertical length
- 626mm maximum horizontal length
Is the pivot door available as a single or double door?

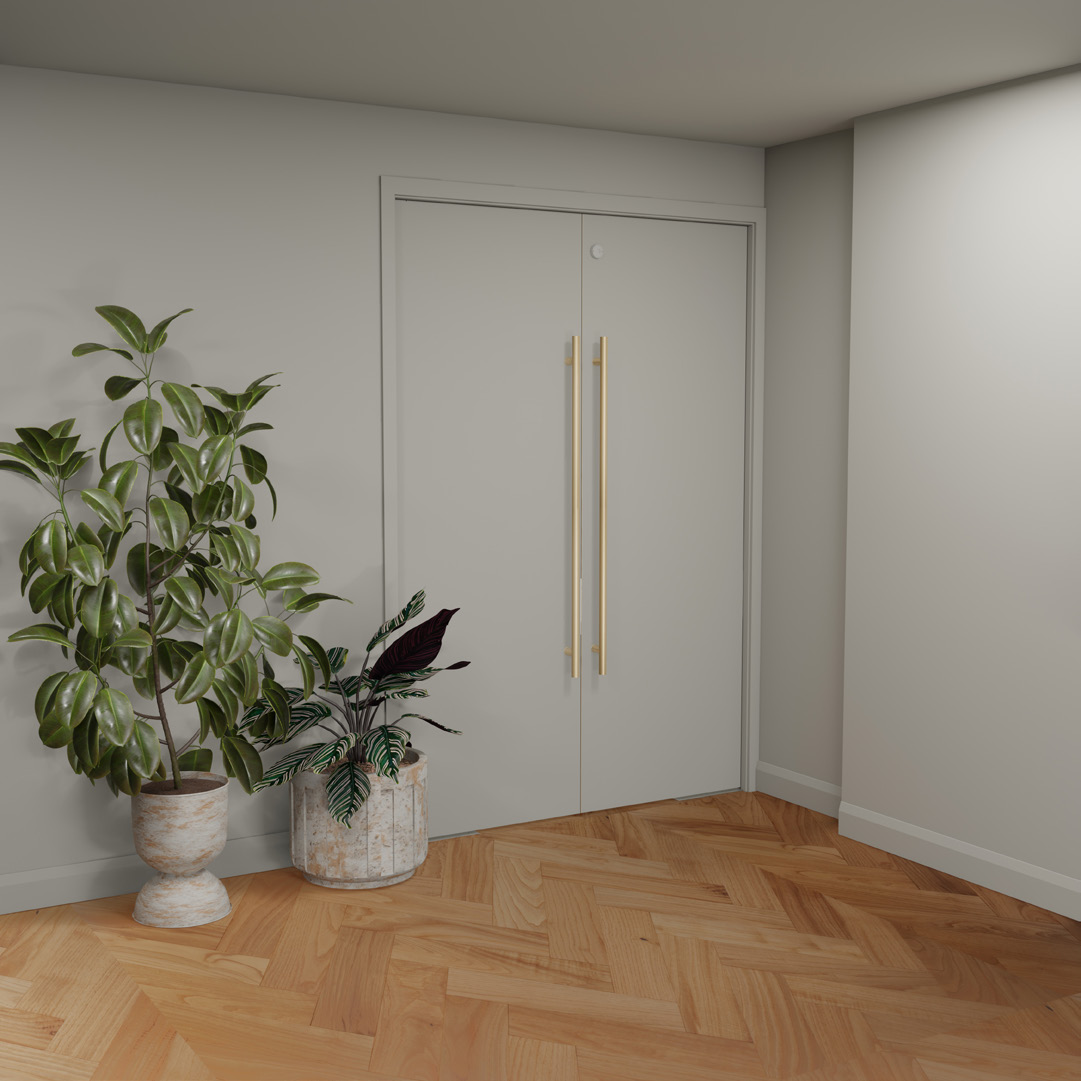

The pivot design is only available as a double door configuration.
Does the door provide acoustic performance?
Yes, approximate acoustic values tested to BS EN ISO 10140-2:2010 are:
- Double doors (glazed): 34dB/Rw
- Double doors (unglazed): 33dB/Rw
Observation: Forza does not currently hold any acoustic test evidence for this type of door assembly when fully fitted. The acoustic values provided are supplied by the door core manufacturer and relate solely to the door core leaf itself, rather than the complete door assembly when fitted.
Can the door be latched?
No, this type of door assembly shall be considered unlatched at all times, even when an ES8100 V-lock is fitted at the head interface.
What lock system can be specified for the door ?
Currently, only the ES8100 Electronic V-lock may be specified at the top head interface between the door and the frame. The mortice body shall be machined into the frame, with the strike plate fitted into the top leading edge of the door leaf, together with the required intumescent protection.
What is the frame thickness and can it be reduced?
Flush frame profile
- Head section: minimum 60mm thick x 90mm wide
- Jambs sections: minimum 50mm thick x 90mm wide
Shadow gap frame profile
- Head section: minimum 60mm thick x 104mm wide
- Jambs sections: minimum 50mm thick x 104mm wide
What about ironmongery options?
For this product, any surface-mounted ironmongery can be used.
Are there any floor finish requirements?
Yes. The floor must feature a non-combustible threshold to maintain fire performance.
What is the maximum allowable size for a D-handle?
The maximum length is 1500 mm between centres, with up to four fixing points per handle.
Which door finishes can be used?
The FD60S Double Action Pivot Door can be tailored to suit almost any design scheme. It’s available in:
- 30+ real wood veneers
- 50+ laminate finishes
- A wide range of painted styles
Are they FSC® compliant?
Yes, FSC® sustainably sourced timbers are available on request.
The FD60S Double Action Pivot Door delivers an elegant balance of safety, performance, and design freedom. Sustainability is also central to the Double Action Pivot Door. Each door is manufactured in the UK to minimise logistics emissions and FSC® certified materials are available, with the potential for up to 100% sustainable sourcing.
This bespoke approach encourages close collaboration between interior designers and Forza Doors, offering highly customisable double-door assemblies with premium timber veneers or decorative laminates, complete with a unique IFCC certification label.
The FD60S Double Action Pivot Door exemplifies Forza Doors’ commitment to combining beauty, innovation, and safety in architectural projects, offering specifiers a truly exceptional option for high-profile commercial interiors.
