Partitions

Innovative partitioning systems delivering outstanding performance with elegant design flair

Enquire now

Quality product

Exceptional timber doors & joinery crafted with precision.

Sustainably made

Support your sustainability goals with locally-made FSC-certified products.

Assured safety

Industry-leading certification & knowledge you can count on.

On time, every time

Reliable on time delivery keeping your projects perfectly on track.

Timber Partitions

Up to 54dB acoustic rating
Severe Duty structural performance
Single and double glazed options

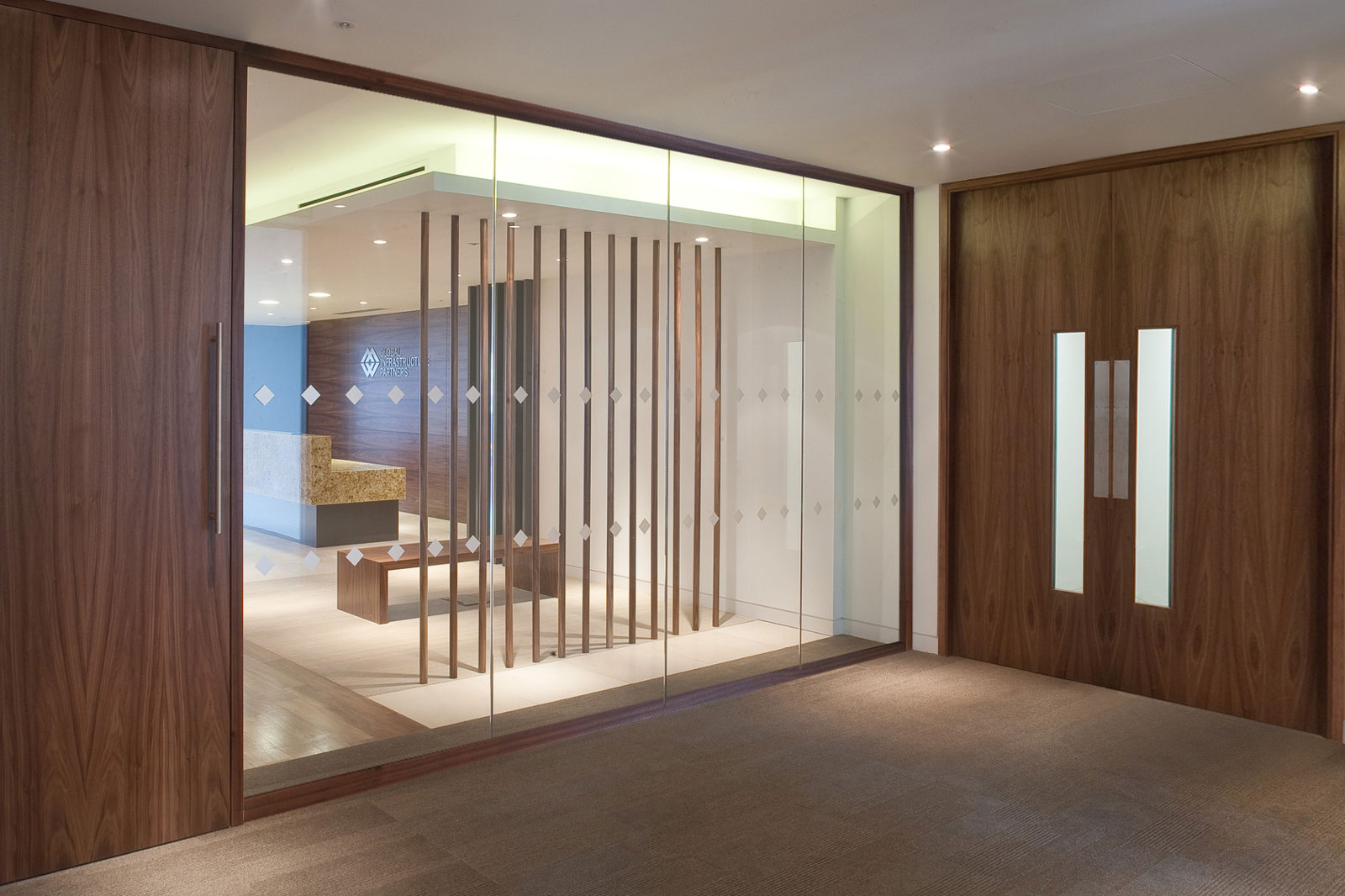

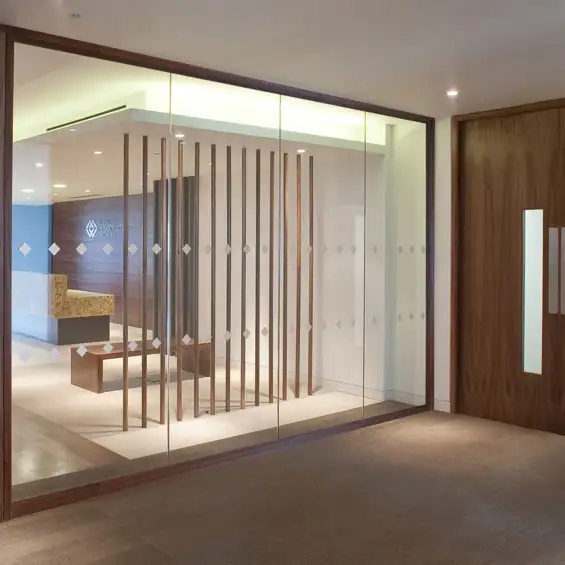

Looking for that sleek, continuous glass wall? Our glazed elevations deliver with either traditional mullion design or seamless glass-to-glass dry joints.

Our partitions don’t just look spectacular - they perform. We've achieved superior acoustic performance (up to 54dBRw), and robust structural integrity that stands up to severe conditions.

Need custom dimensions? Our technical team is ready to help ensure your specific requirements maintain performance excellence without design compromise.

Our fully certified system offers:

Single and double glazed options
Solid or veneered panels
Versatile door modules including our unique concealed frame with matched veneers

Technical Specifications

Fire performance

None

Smoke control

None

Acoustic performance

35dB-54dB

Rating according to BS EN ISO 717-1: 1997 & 2013 in accordance with BS EN ISO 10140-2:2010

Structural performance

Severe Duty

Doorset resistance to vertical load to BS EN 947 : 1999 : Severe Duty Doorset resistance to soft body impact To BS EN 949:1999 : Severe Duty

Embodied carbon

Not available

Warranty

10 years

Country of manufacture

United Kingdom

Sustainable sourcing

FSC® up to 70% RICS Ska rating Ska ID. M09. Rank 5

FSC® certified products available on request

Frame dimensions

Frame face 45mm X depth 103mm (to suit 75mm solid), 128mm (to suit 100mm solid), 150mm (to suit 122mm solid)

Partition dimensions

Partition Height up to 3000mm Module width up to 1200mm

Request a quote

Customisation

Method of build

To assist you with installation and final glazing, we’ve developed a series of proven method of build guides for our partition systems.

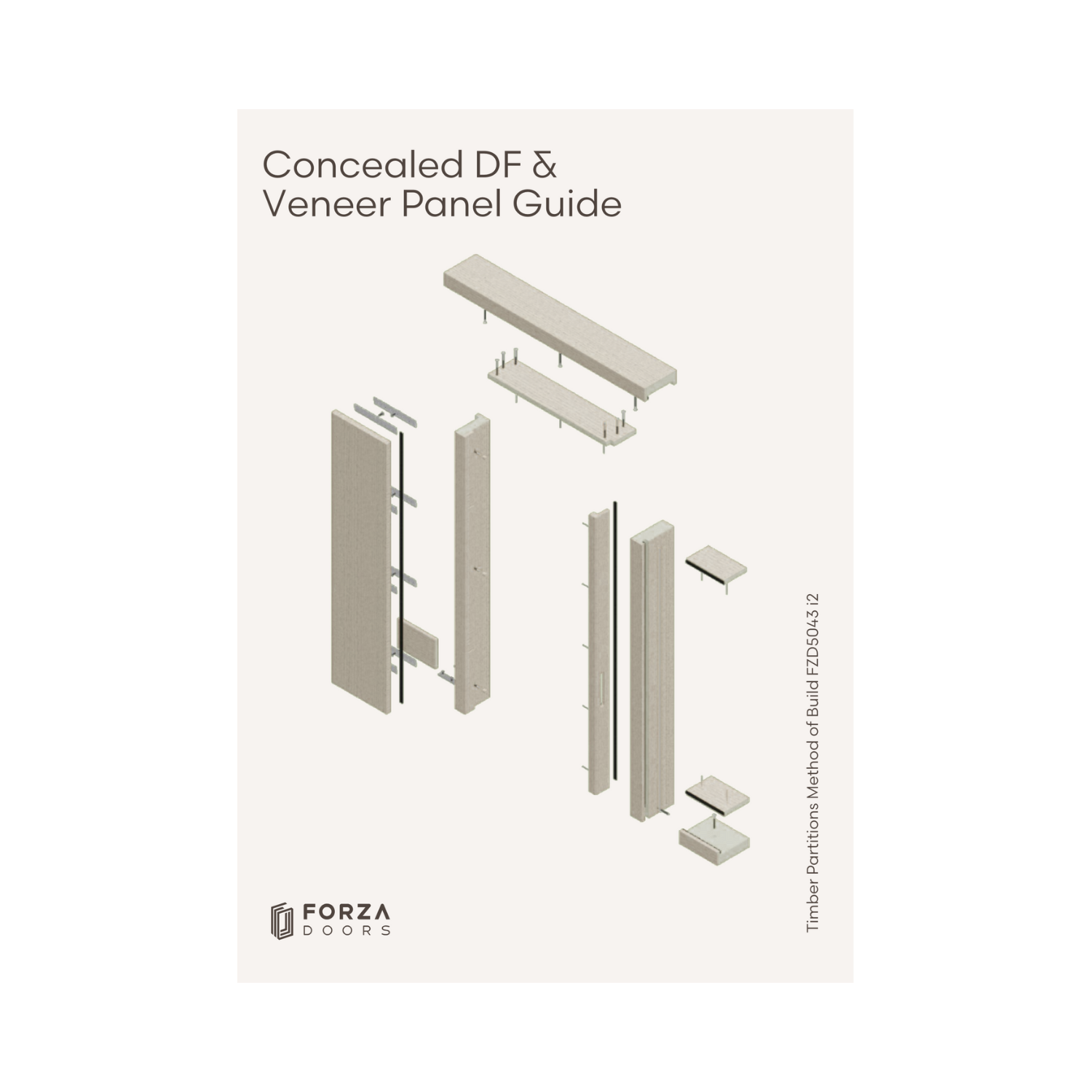

Concealed DF & veneer panel

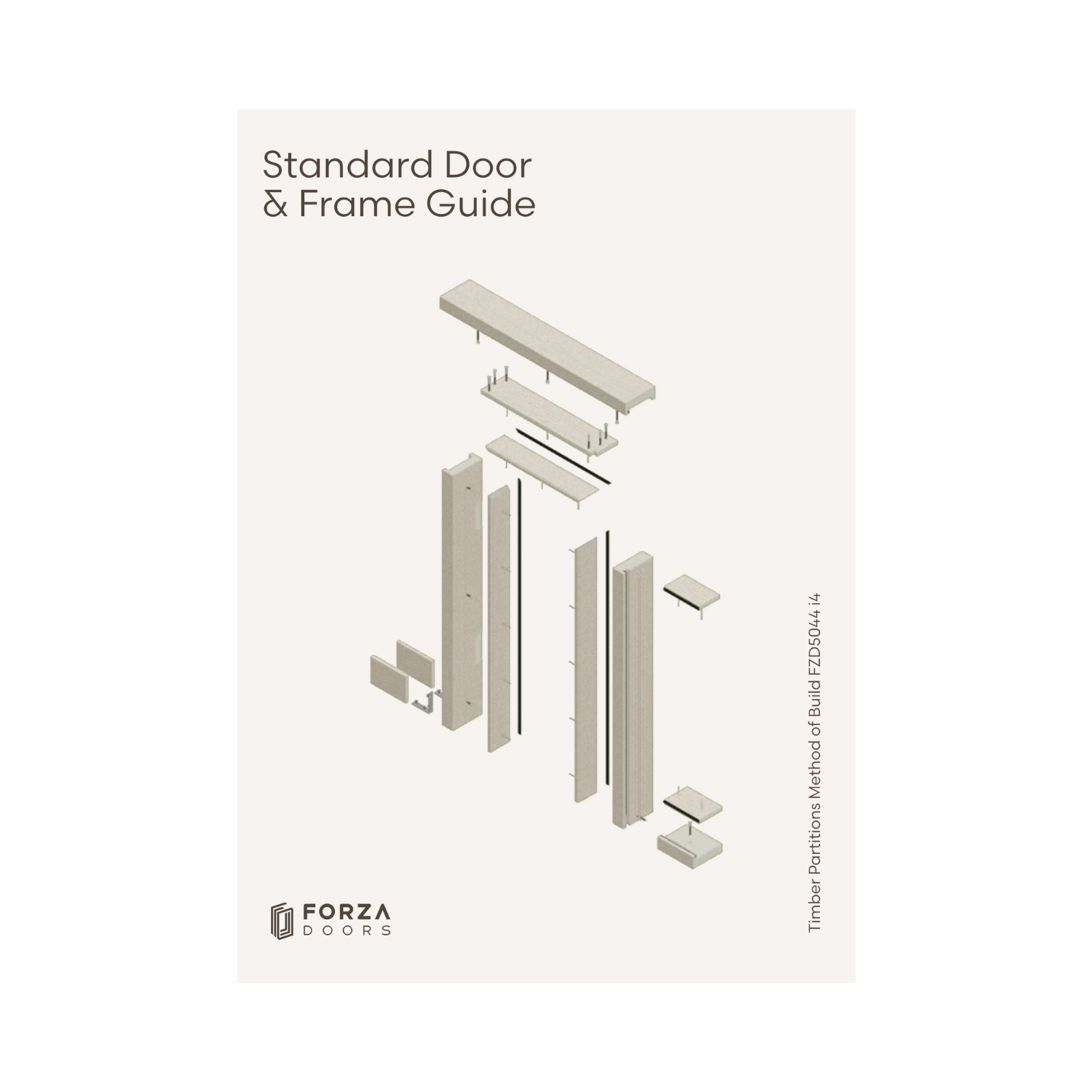

Standard door & frame

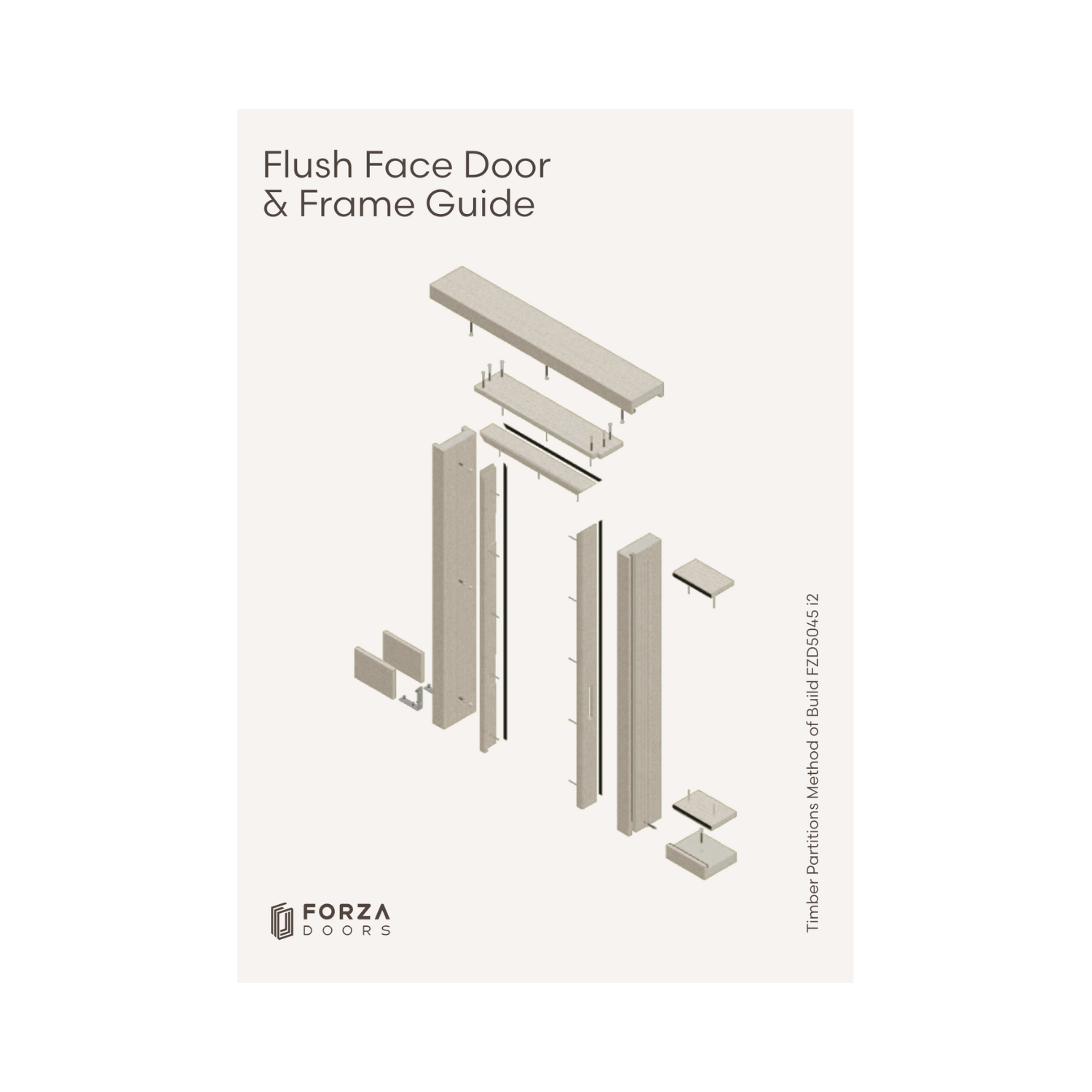

Flush face door & frame

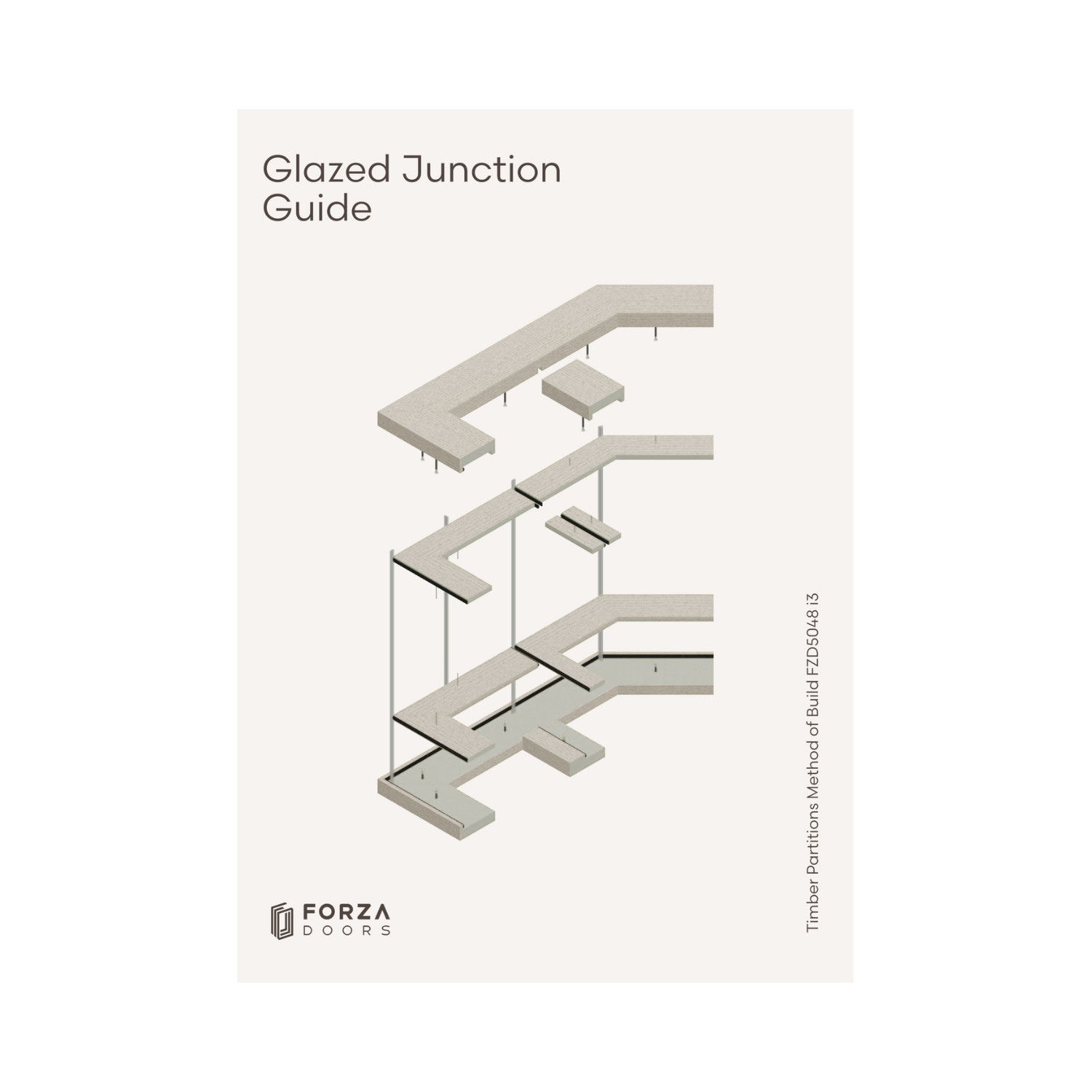

Glazed junction

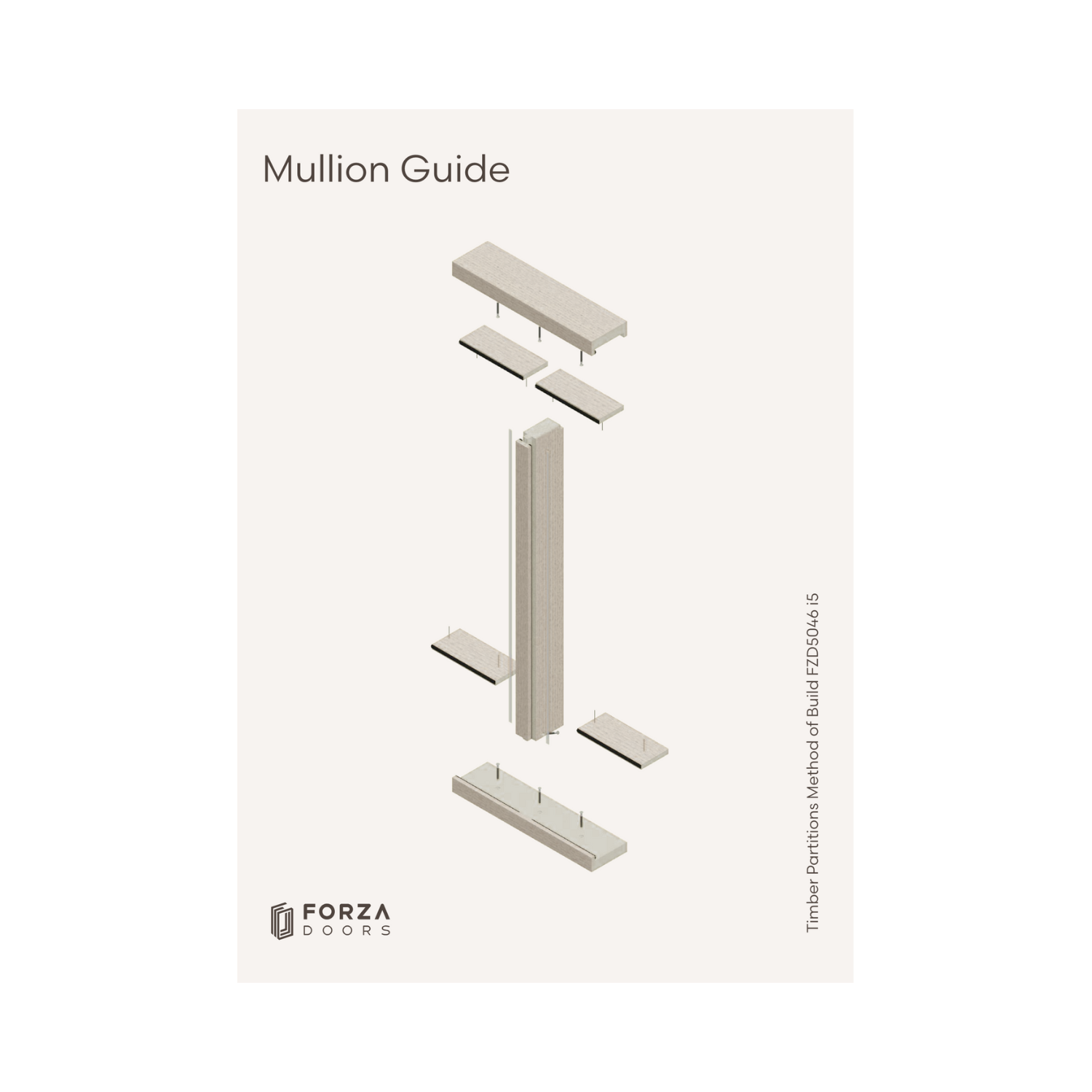

Mullion guide

Gasket guide

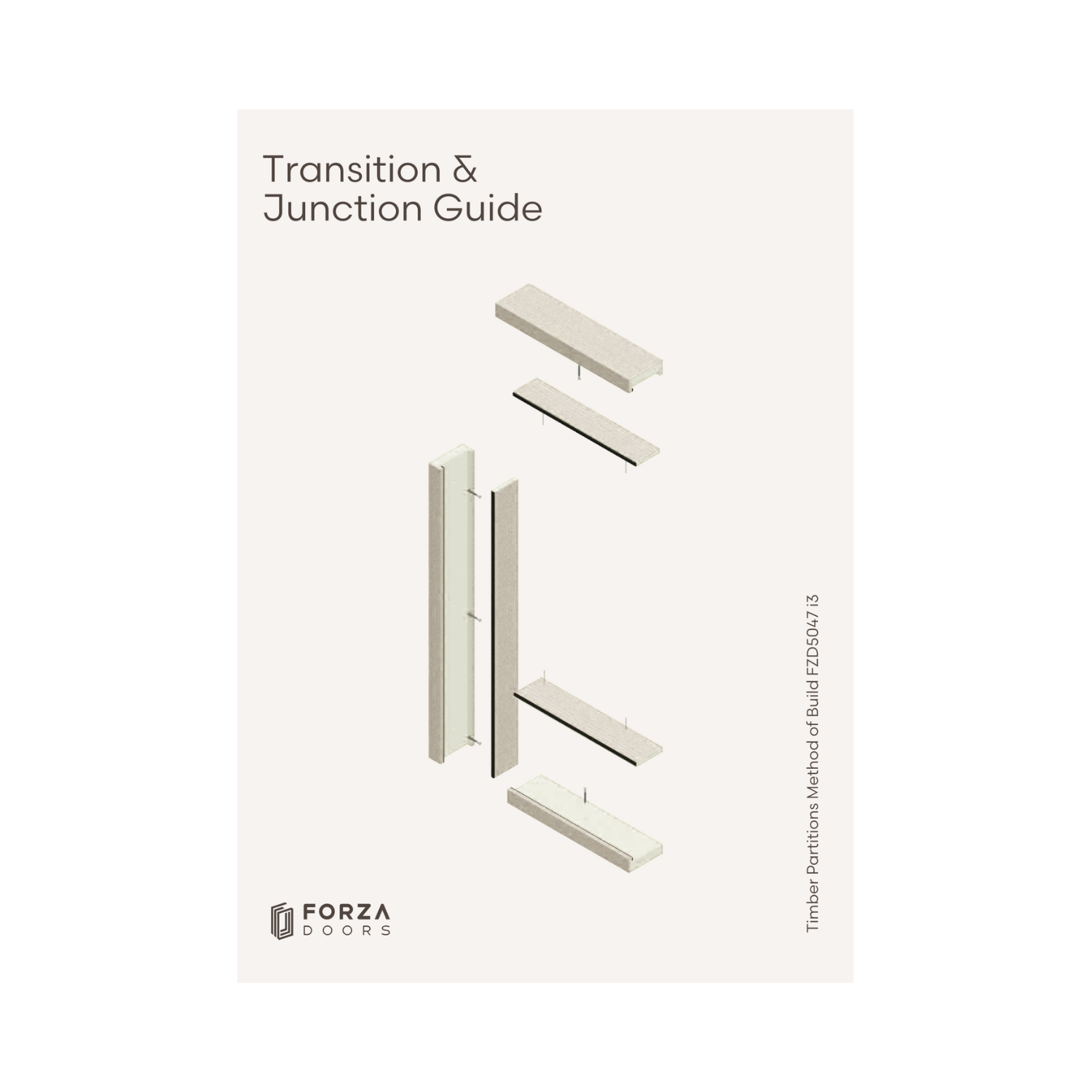

Transition & junction guide

Module options

Glazed Mullion or Glass to Glass

(Dry Joint Gasket or optional silicon)

Single Centre
Single Offset
Double Door

Door

Standard door and frame
Flush face door and frame
Concealed doorframe with sequentially matched veneer panel and door

Solid

Wrap round transition
Flush shadow gap
Veneer panel (prepared for room book system)

Finishes: The Imola design of our partitions incorporating veneer, timber and MDF means you can choose from an extensive choice of commercially available veneers or paint finishes. Browse available finishes here.

Components

Our standard components comprise 45mm frame sections for head, base, mullions, door and junctions to suit solid structural depths of 75mm (MA), 100mm (MB) and 122mm (MC).

Need different dimensions? Contact us for technical guidance or a bespoke estimate. Download the full component chart below.

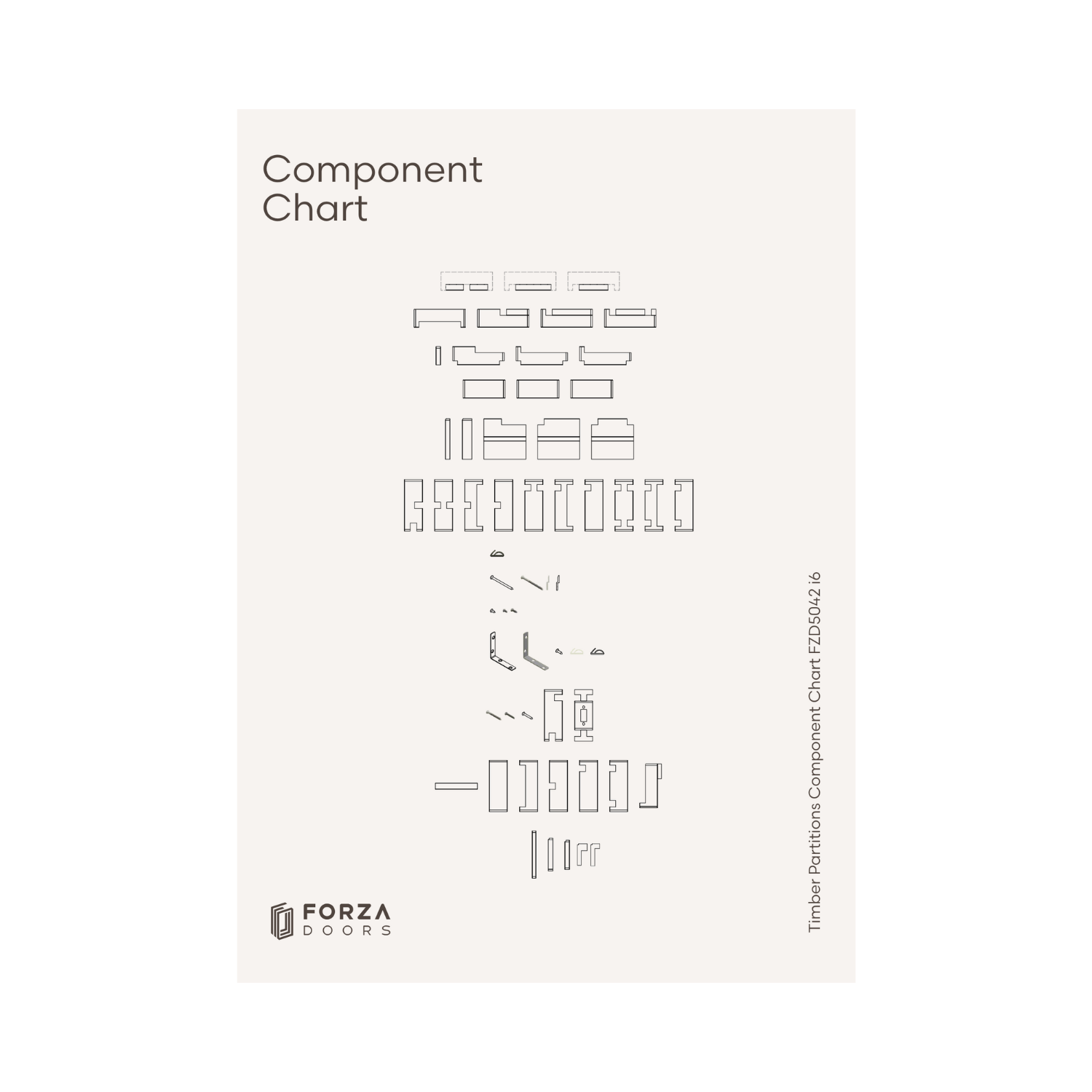

Component chart

Acoustics

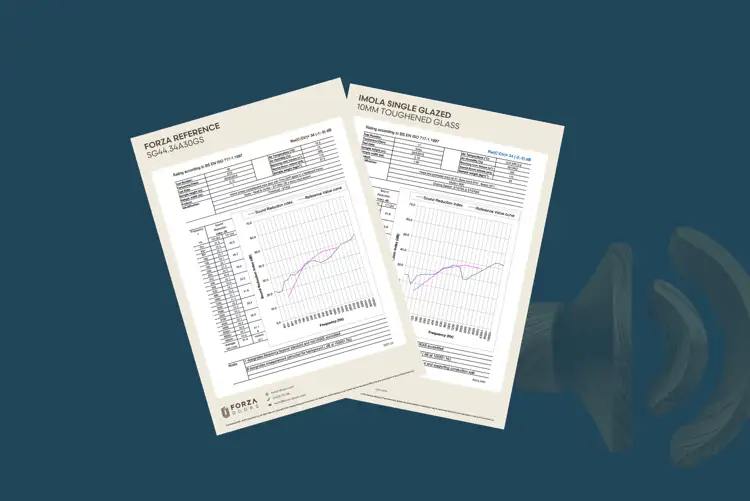

Our partition system has been tested at Sound Research Laboratories to determine the sound reduction index of various glass combinations in accordance with BS EN ISO 10140-2-2010.

The results of the measurements (reported in accordance with BS EN ISO 717-1:1997 & 2013) and subsequent analysis are given in data graphs available here.

The laboratory sound insulation characteristics of the Imola timber frame system & principle glass combinations are:

Single Offset or Single Central Glazed

10mm toughened glass - 34dBRw
12mm toughened glass - 35dBRw
10.8mm Acoustic glass - 38dBRw
16.8mm Acoustic glass - 41dBRw

Double Glazed

10mm & 12mm toughened glass - 49dBRw
10.8 Acoustic 12mm Toughened - 51dBRw
12mm toughened glass & 16mm GFP fireglass - 51dBRw
16.8mm & 12.8mm Acoustic glass - 54dBRw

Visionline or Glass-to-Glass Joint Single

12mm Toughened glass - 31dBRw
12.8 mm Acoustic glass - 37dBRw Double
10mm & 12mm Toughened glass - 45dBRw
10mm toughened & 12mm Acoustic glass - 49dBRw

Structural

Our MDF frame screens and partition system have been subjected to a number of physical tests and CAD finite element analysis simulations to confirm the structural stability complies with guidelines for Strength and Robustness detailed in various British standards.

The Forza screen and partition systems fall within the recommended maximum displacement of 25mm detailed in BS6180-2011 and achieve a severe duty grade performance for partition stiffness (test annex A) detailed in BS5234-2.1992.

See the full test results by downloading the document below.

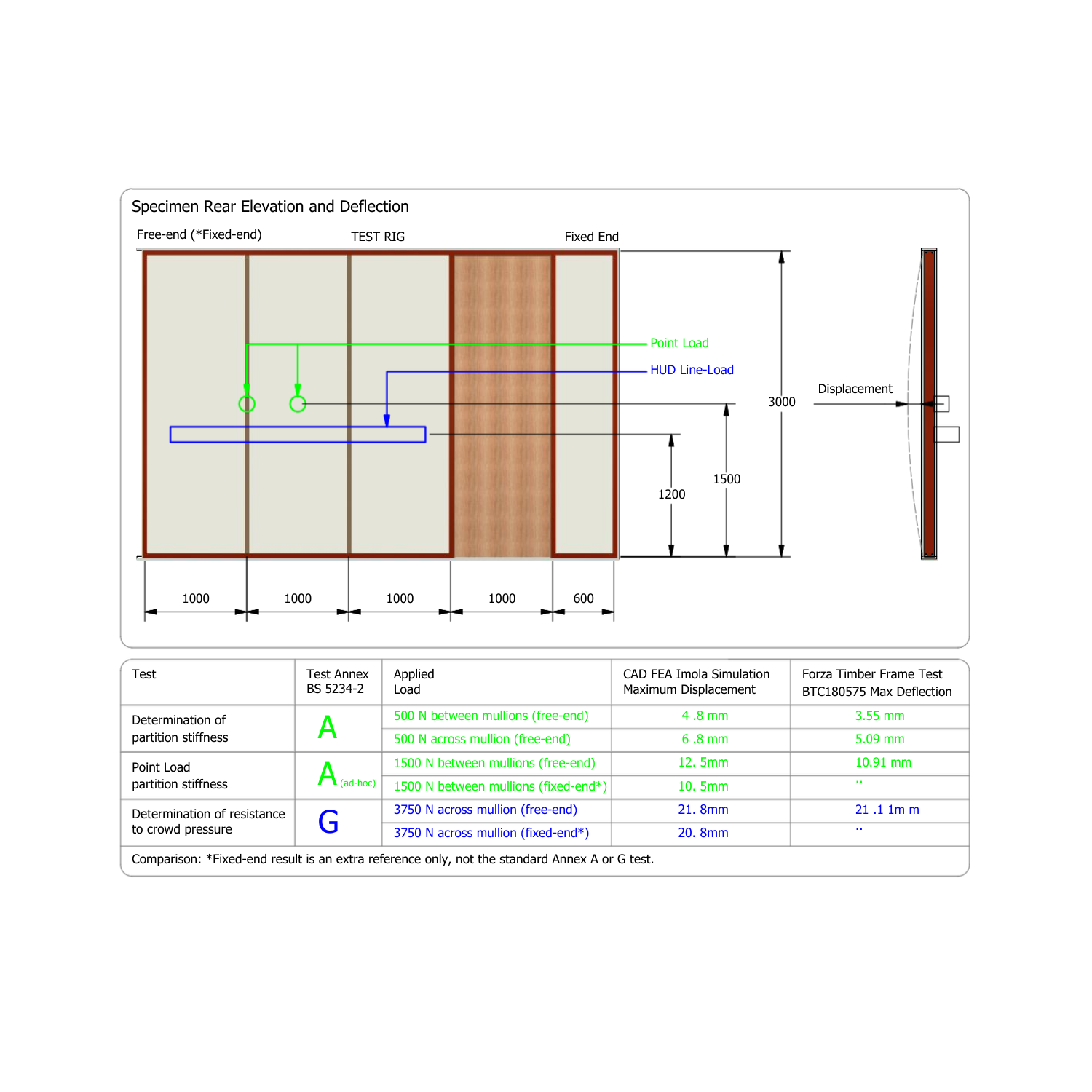

CAD Finite Element Analysis Simulation of BS5234 Annex A and Annex G
