Washroom Panels

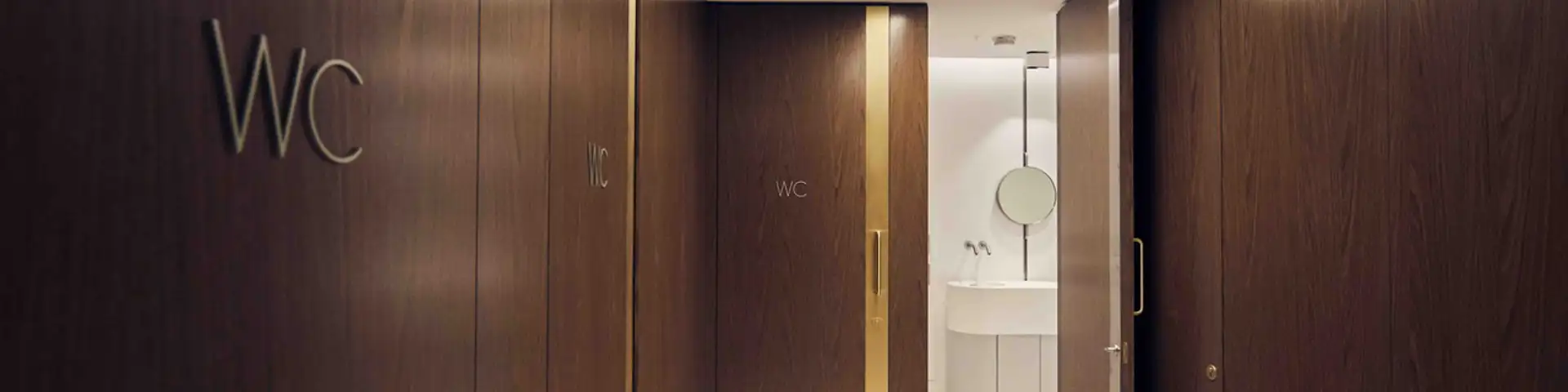

Masterfully aligned timber components create stunning visual continuity in commercial washroom spaces

Enquire now

Quality product

Exceptional timber doors & joinery crafted with precision.

Sustainably made

Support your sustainability goals with locally-made FSC-certified products.

Assured safety

Industry-leading certification & knowledge you can count on.

On time, every time

Reliable on time delivery keeping your projects perfectly on track.

Commercial Washroom Panels

Sequentially matched veneer
Available in wood veneer or HPL laminate finishes
Hand-finished to your exact specification

As veneer selection specialists, our flush and frameless executive cubicle doors & panels timber are sequentially matched to ensure the timber grain is beautifully aligned throughout each run of doors, pilasters and dividers.

Each washroom cubicle is a custom project tailored to your specific needs, from size and finish to ironmongery.

Typically, we start with a quote based on your PDF or DWG layout drawings. From there, we’ll provide a detailed quote, referencing each panel for easy tracking in delivery and invoicing. During this process, we’ll also review design options, finishes, and fixings to ensure everything runs smoothly.

Once the order is placed, we create detailed drawings for your approval and to guide our manufacturing. Finally, all parts will be carefully packaged and labelled, making installation easy and efficient.

Technical Specifications

Types

Type 1 Dividers split 44mm solid Type 2 Dividers – Existing partition or block wall build

IPS panels

Typically 19mm thick Laminate or Veneer finish

Lacquer

Our standard UV Cured Acrylic lacquer is available from 5% to 40% sheen levels

Lippings

All of our solid timber Lippings are pressure bonded using Polyurethane adhesive

Embodied carbon

Not available

Warranty

10 years

Country of manufacture

United Kingdom

Sustainable sourcing

FSC® up to 70%

FSC® certified products available on request

Materials

Doors, dividers, pilasters: Three layer wood particleboard high performance door core conforming to BS EN 312-2 (Type P2) Composition L softwood (Spruce, Pine, Larch) with hardwood (Birch, Chestnut) and sawmill. Residue / recycled wood fibre. Average bulk density: 580-630 Kg / m³. Weight 44 mm: Nom 27 Kg / m² Panels: MDF

Request a quote

Customisation

Panels

Veneered doors high grade 44mm particle board pre lipped 16mm thick solid timber with finished UV cured 2 part AC Clear lacquer
HPL Laminated pre lipped 16mm solid timber with high grade 44mm particle board or option for exposed lipping for contrasting edge
Pilasters – Finish options as per doors
Divider type 1 – Finished as per doors and pilasters
IPS Panels – 18mm veneered or laminated MR MDF with either solid timber or 2mm ABS edging

Finishes

Natural and engineered veneers, vertical or horizontal grain directions
HPL Laminates including high gloss, soft touch and natural woodgrain
Solid timber edge finishes pre applied to all edges prior to face coverings
Optional 2mm ABS edge lipping for IPS panels
Solid timber Pilaster and divider floor and ceiling battens (Lacquer or paint finish)

Dimensions

Any height up to 3000mm, depth from 1500mm to 1900mm (with split 45mm thick divider panels)
Door, Pilaster and solid divider thickness 44mm,580- 630kg / M3
Top clearance typially 20mm, bottom clearance 20mm to avoid floor water contact
Height tolerances plus or minus 3mm from finished floor to ceiling height
Width tolerance plus or minus 5mm for wall abutment fixings

Construction

38 x 19 Aluminium U channel for top & bottom divider and wall abutment fixing
38 x 19 Aluminium solid bar for top and bottom pilaster fixing
Solid timber Pilaster and divider floor and ceiling battens (Lacquer or paint finish)
Pilasters have 3 way fixings, top, bottom & high strength panel connectors to dividers

Ironmongery

Rising butt stainless steel hinges 1.5 pairs – Fall to close
Lever operated mortice lock with stainless steel indicator and strike plate
Stainless steel Coat hook, door stop and pull handles
Optional soft close damper units
Concealed hinges for both Internal and external opening doors with built in damper closing (Ansi Hinges)

Drawings

Click on the images below to see a large-scale 3D render of our standard washroom configurations. Every washroom project we do is custom to you specification, speak to us for more.

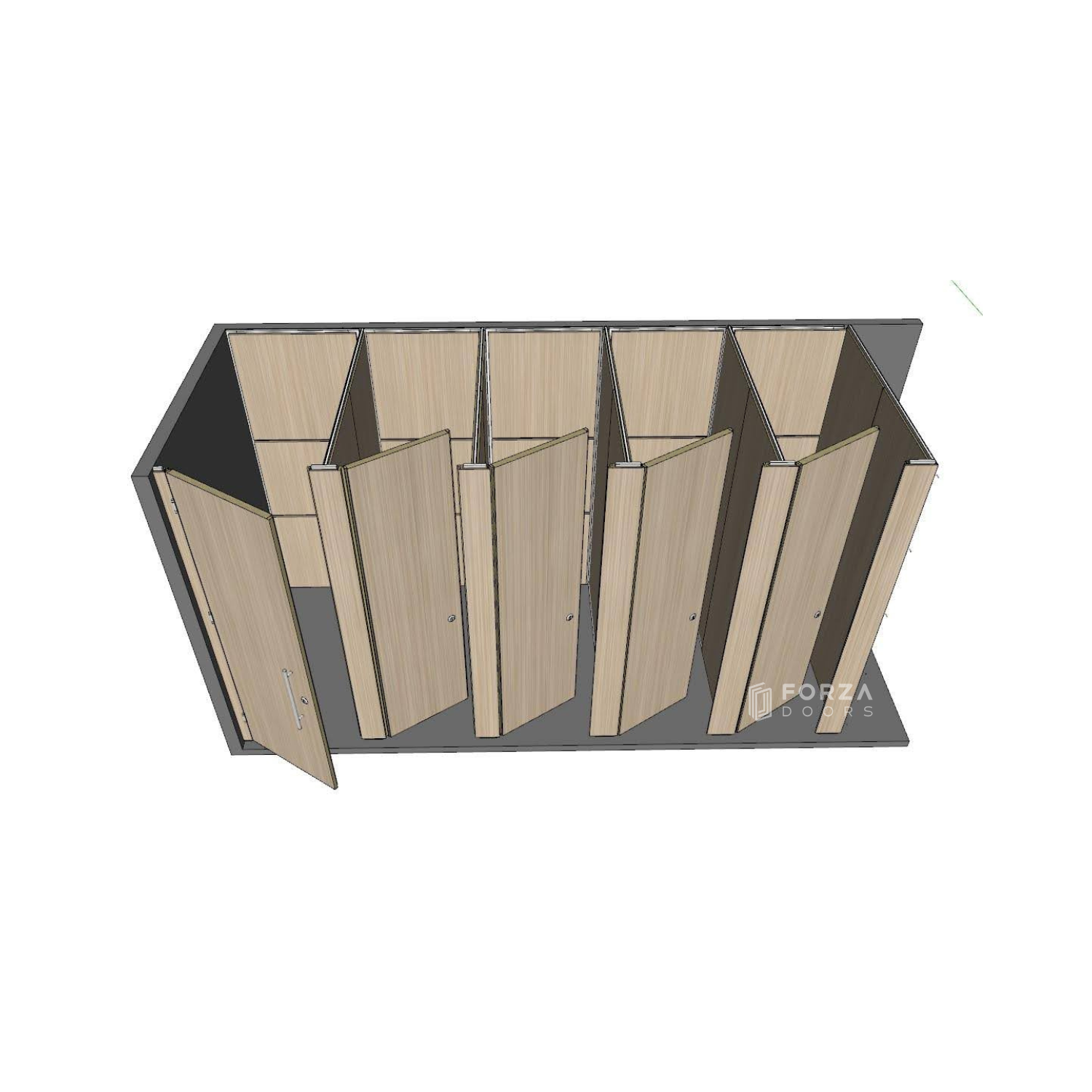

Overall Doors In Opening Position With IPS Panels

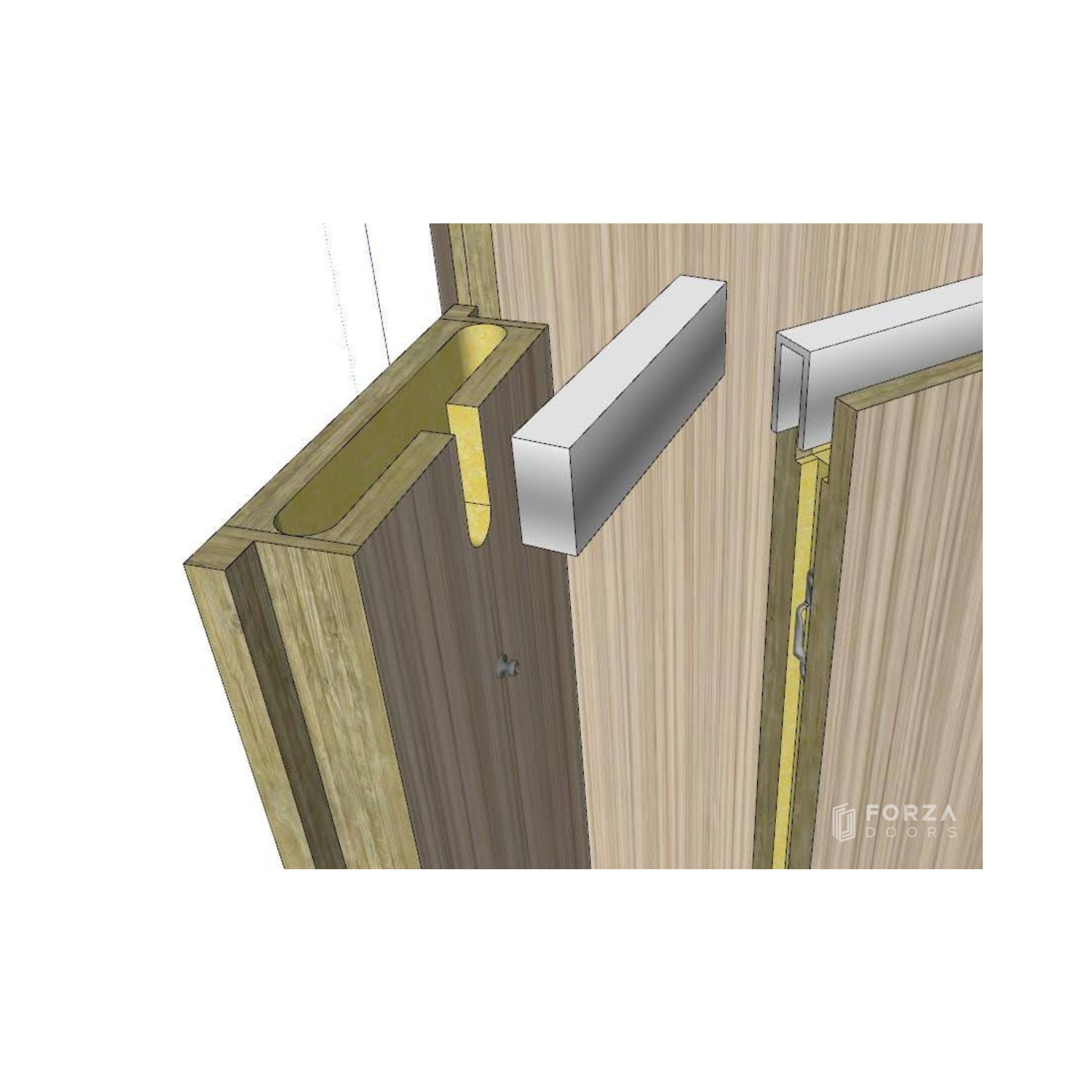

Centre Pilaster To Divider Detail

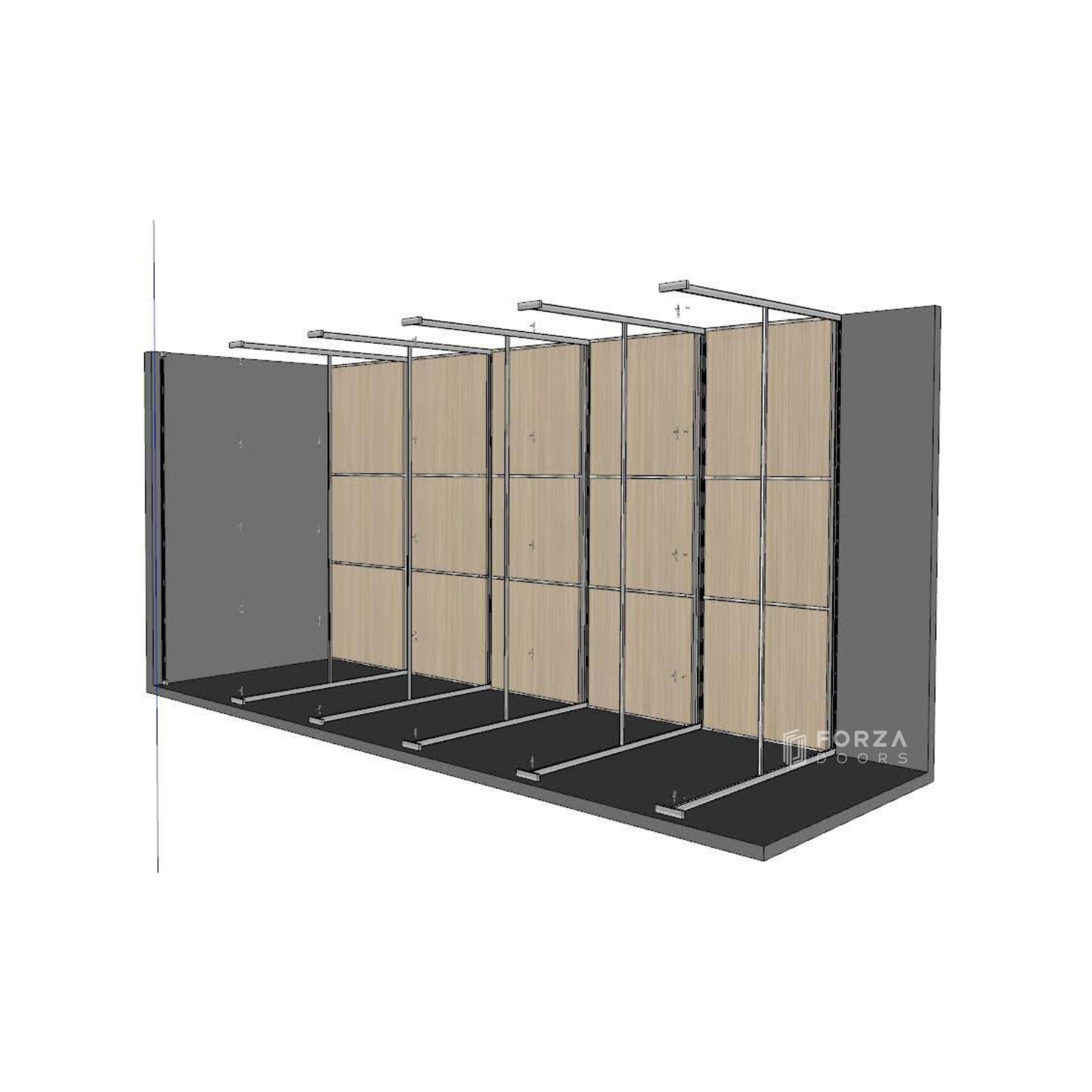

Showing Fixing Batten Layout Excluding Panels

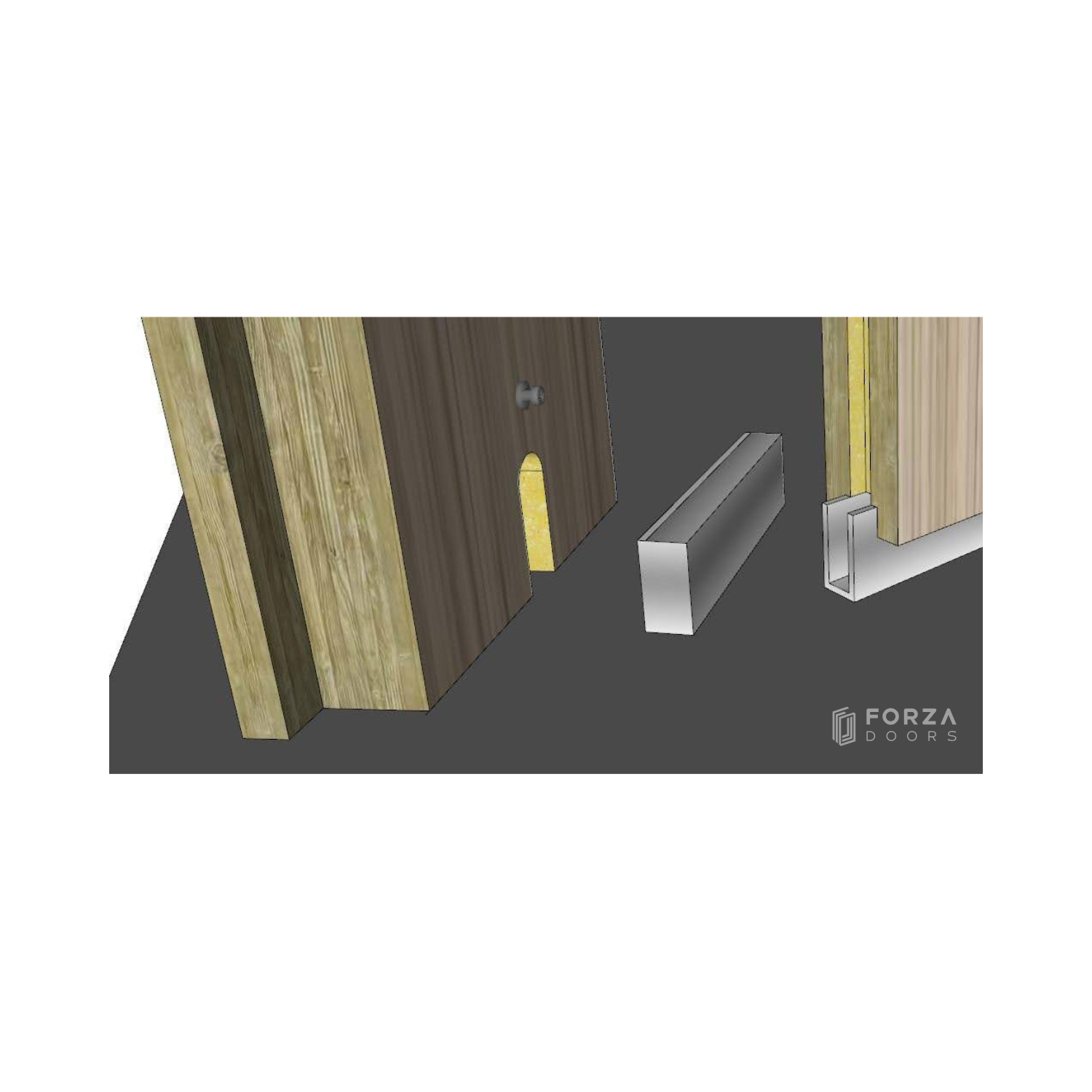

Bottom Pilaster To Divider Detail

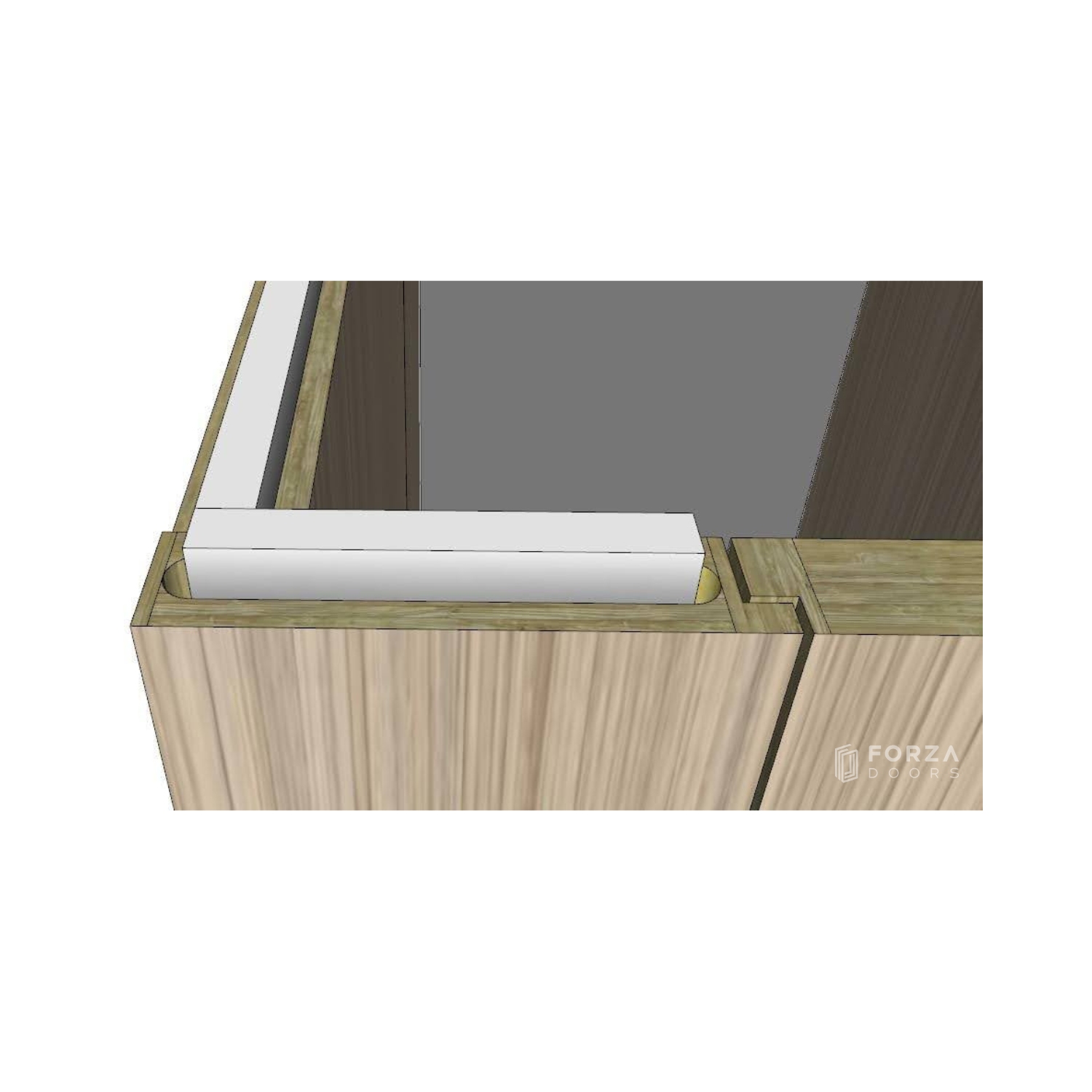

Exposed Corner End Pilaster

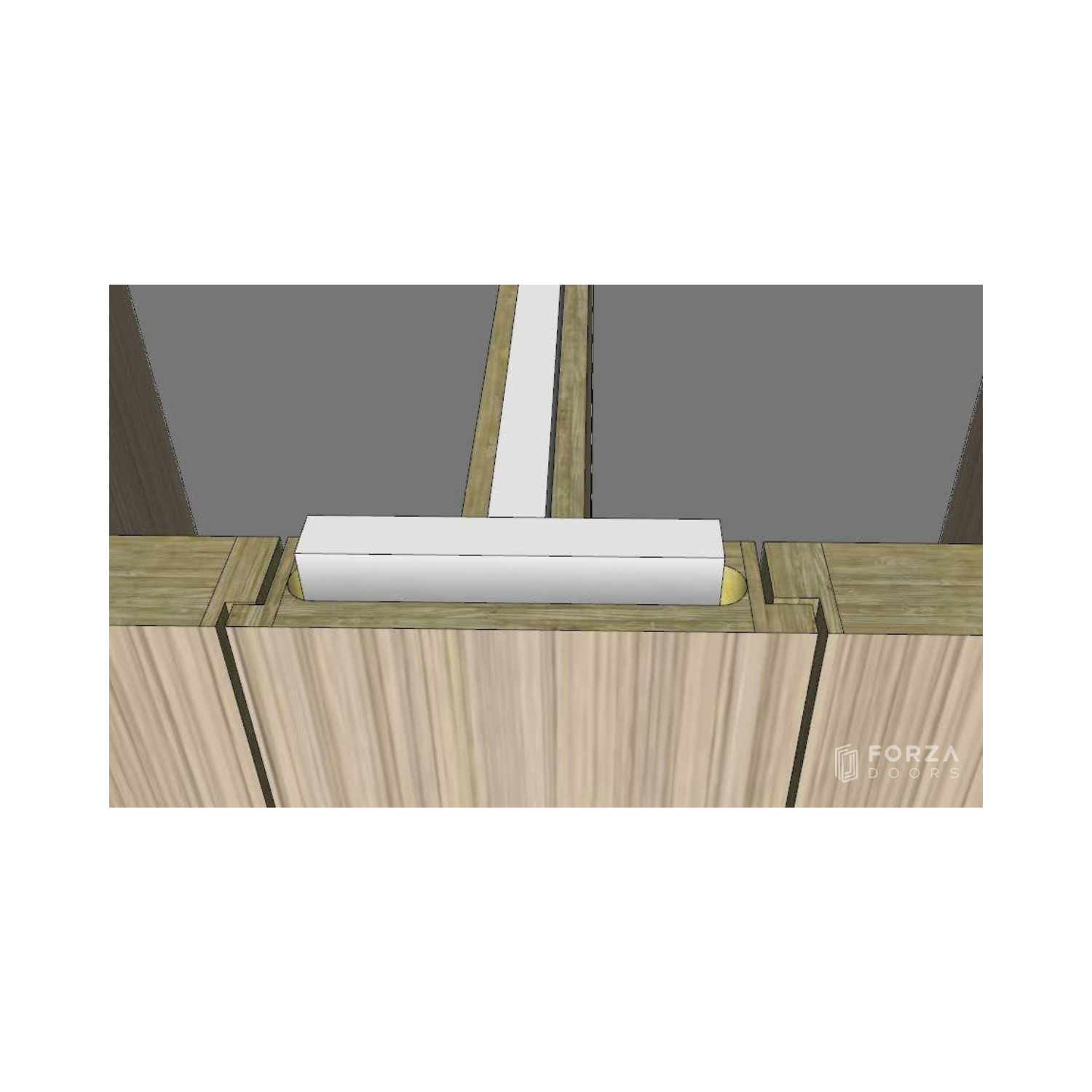

Centre Pilaster To Divider Detail

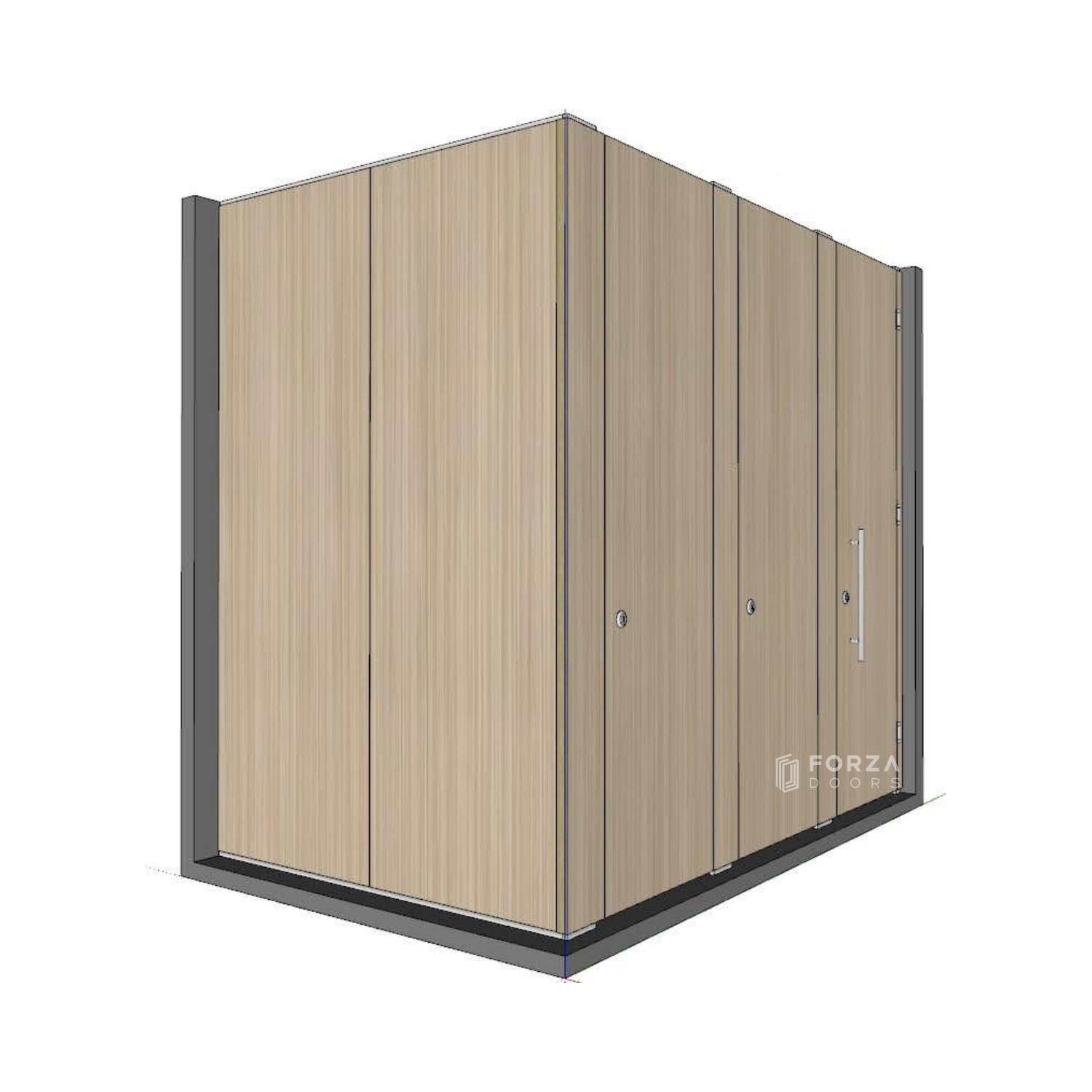

Overall Exposed Corner View

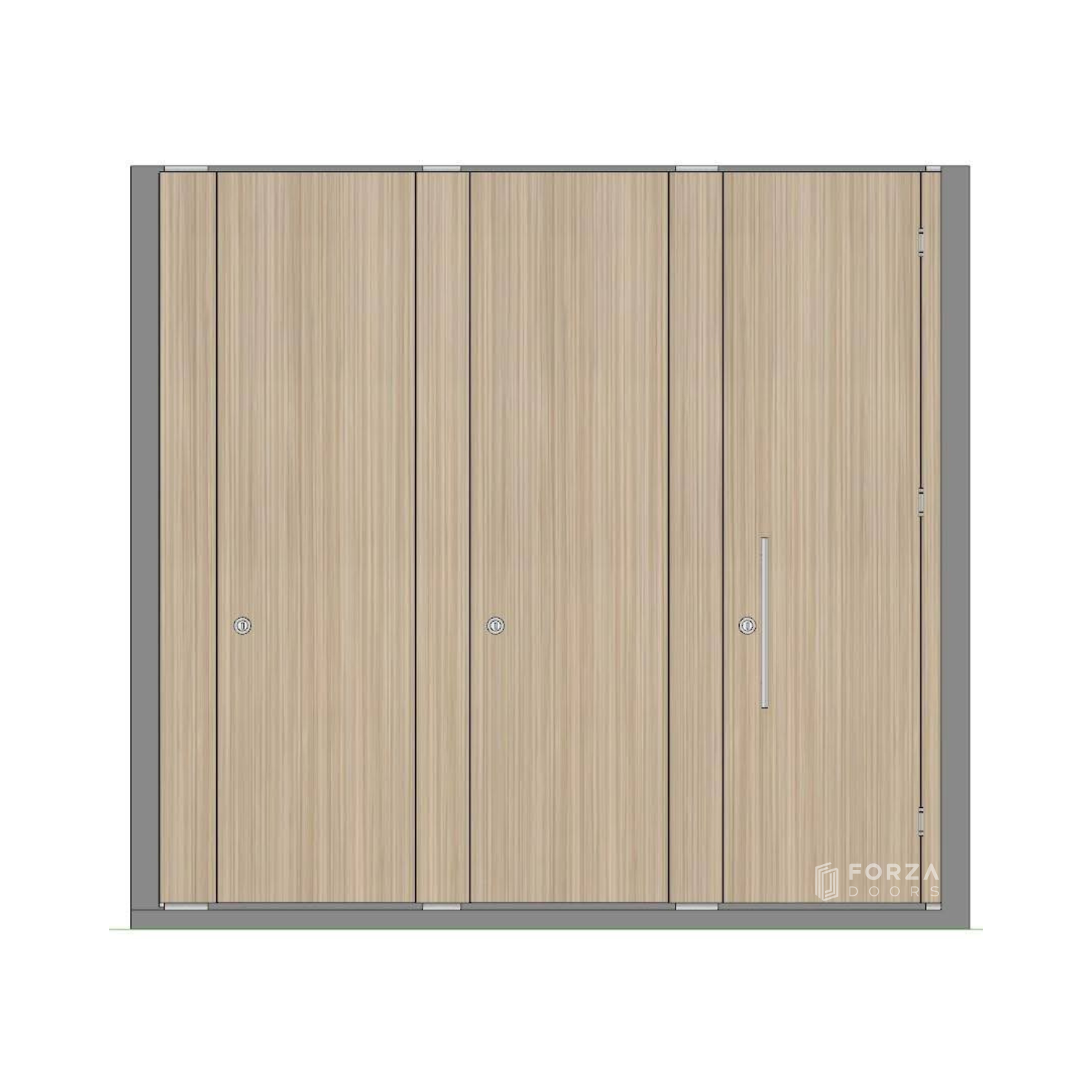

Overall Doors In Closed Position
