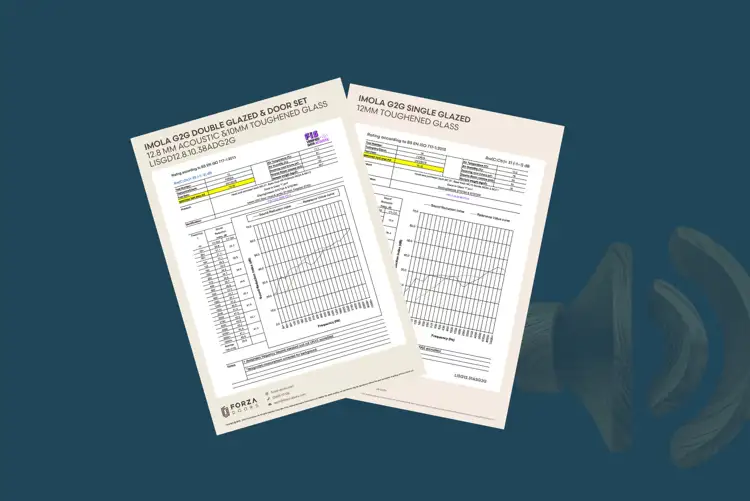

Imola Acoustic Performance - Glass to Glass Joint
FIS Verified
| Code | Glazed Modules | |||||||
| dBRw | Glass | FIRE | FIS Verification Ref. | - | ||||
| LISG12.31ASG2G | 31 | 12mm Toughened | N/F | FIS-T-G-3135-FO-A |
|
|||
| LISG12.8.37ASG2G | 37 | 12.8 mm Acoustic | N/F | FIS-T-G-3640-FO-A |
|
|||
| LISG1210.45ADG2G | 45 | 10mm & 12mm Toughened | N/F | FIS-T-G-4145-FO-A |
|
|||
| LISG10.12.8.49ADG2G | 49 | 10mm toughened & 12mm Acoustic | N/F | FIS-T-G-4650-FO-A |
|
|||
| Code | Glazed Module & Doorset | |||||||
| dBRw | Glass & Doorset | FIRE | FIS Verification Ref. | - | ||||
| LISGD12.8.10.38ADG2G | 38 | 12.8mm Acoustic & 10mm Toughened & 54mm GDC Doorset | N/F | FIS-T-DG-3640-FO-A |
|
|||
| LISGDG12.8.10.39ADG2G | 39 | 12.8mm Acoustic & 10mm Toughened & 54mm GDC Doorset & VP | N/F | FIS-T-DG-3640-FO-C |
|
|||
| LISGDFS12.8.10.44ADG2G | 44 | 12.8mm Acoustic & 10mm Toughened & 59 FSM Doorset | N/F | FIS-T-DG-4145-FO-A |
|
|||
