FD30 Fire Doors & Frames

Certified for 30 minutes of fire resistance, our FD30 doors and frames offer reliable protection with sleek design for any space.

Enquire now

Quality product

Exceptional timber doors & joinery crafted with precision.

Sustainably made

Support your sustainability goals with locally-made FSC-certified products.

Assured safety

Industry-leading certification & knowledge you can count on.

On time, every time

Reliable on time delivery keeping your projects perfectly on track.

FD30 Fire Doors

Single doors

Up to 35dB acoustic rating
Primary test evidence available
EPD available

Choose from our range of FD30 single-door assemblies with optional glazed fanlights, sidelights, solid side panels, overpanels, and matching cladding panels.

These doors feature a high-quality face finish with bespoke handcrafted real wood veneers or commercially available decorative laminates.

Designed to meet fire-rated standards, the product complies with BS 476-22 fire resistance regulations, providing 30 minutes of fire protection as a non-load-bearing system.

Technical Specifications

Fire performance

To BS 476-22, 30 minutes

Smoke control

To BS 476-31-1, 30 minutes

Acoustic performance

32dB - 35dB

Sound reduction index Rw 32dB - 35dB To BS EN ISO 717-1:2013

Structural performance

Severe Duty

Mechanical test to BS EN 1192, Class 4: Severe Duty Cycling test to BS EN 1191, Class 7: Heavy Duty

Embodied carbon

6.28 kg CO₂ eq/m²

6.28 kg CO₂ eq/m² without vision panel 7.52 kg CO₂ eq/m² with vision panel

Core

Average bulk density 540-630kgs / m3

Range of timber-based cores with average bulk density 540-630kgs / m3 Weight 44mm; Nom 27kgs / m2

Frame compatibility

Hardwood, softwood, MDF, aluminium and steel

Warranty

10 years

Country of manufacture

United Kingdom

Sustainable sourcing

FSC® up to 70%

FSC® certified products available on request

Finishes

Wood veneer: Two coats high solid ultra violet (uv) cured lacquer, clear, 20% gloss / other. Veneer standards available: Ash/Cherry/Oak/St. Beech/Maple/American Black/Walnut/others (all available in FSC) Cut: Crown/Quarter/Rift/other. Match: Book/Random/Slip/Quarter/other. Grain direction: Vertical/Horizontal/Inlay/other. Laminate: to conform to EN 438 & ISO 4586. Primed: Forza primed coat (FPC) for painting by others. Painted: RAL, BS 4800, Pantone colors. Standard sheen 20% gloss

Request a quote

Customisation

Vision Panels

Choose from a range of FD30 approved vision panel designs, bespoke designs available on request.

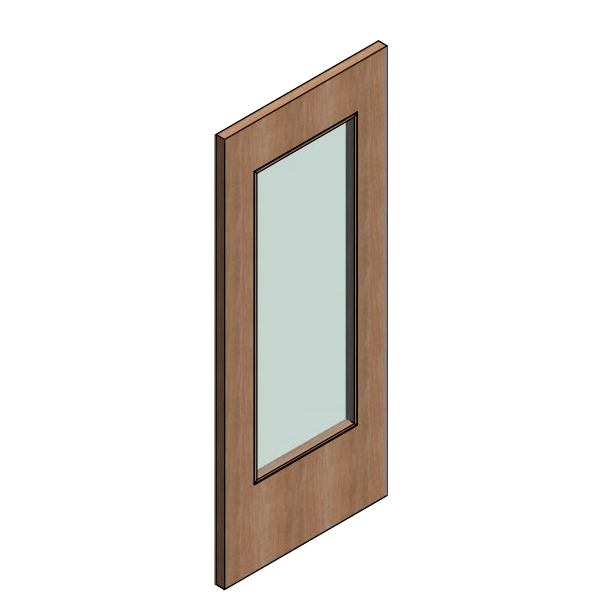

V10

See all FD30 vision panels

Frames

Forza frames are typically made from hardwood (Min density 450 Kg/m³), and also available in a wide range of softwood and MDF (min density 700 Kg/m³). Whatever the material, we can perfectly match your doors to your frames for a seamless finish.

Profile: integral stop / loose stop / rebated / shadow gap

Delivery options: Available assembled, unassembled or pre-assembled and disassembled for transport purposes.

2-part timber shadow-gap doorframe

3-part timber doorframe

4-part timber doorframe

5-part split doorframe

Double action doorframe

Concealed doorframe

See all frames

Elevations

All FD30 door leaves are available with overhead overpanel or fanlights and/or sidelights, choose from any of the options below.

Single door

Single door with side leaf

Single door with overpanel

Single door with side panel and overpanel

Single door with glazed overpanel

Single door with side panel and glazed overpanel

Single door with glazed side panel

Single door with side leaf and glazed side panel

Ironmongery

Choose from one of the widest ranges of suitable ironmongery in the industry, all certified and approved for use with timber FD30 doors & frames.

Ironmongery compatibility check & guidance: we will check whether your ironmongery is compliant and advise if you need to make a change to your design.

Milling service: we offer machine-finished precise milling for all your locks, hinges, closers and more, be sure to include it in your quote request.

Concealed hinge

Central pivot closer

Concealed closer

Mortice locks

Cable way & lead cover

See more ironmongery

Double doors

Up to 35dB acoustic rating
Primary test evidence available
EPD available

Choose from our range of FD30 double-door assemblies with optional glazed fanlights, sidelights, solid side panels, overpanels, and matching cladding panels.

These doors feature a high-quality face finish with bespoke handcrafted real wood veneers or commercially available decorative laminates.

Designed to meet fire-rated standards, the product complies with BS 476-22 fire resistance regulations, providing 30 minutes of fire protection as a non-load-bearing system.

Technical Specifications

Fire performance

To BS 476-22, 30 minutes

Smoke control

To BS 476-31-1, 30 minutes

Acoustic performance

32dB - 35dB

Sound reduction index Rw 32dB - 44 dB To BS EN ISO 717-1:2013

Structural performance

Severe Duty

Mechanical test to BS EN 1192, Class 4: Severe Duty Cycling test to BS EN 1191, Class 7: Heavy Duty

Embodied carbon

6.28 kg CO₂ eq/m²

6.28 kg CO₂ eq/m² without vision panel 7.52 kg CO₂ eq/m² with vision panel

Core

Average bulk density 540-630kgs / m3

Range of timber-based cores with average bulk density 540-630kgs / m3 Weight 44mm; Nom 27kgs / m2

Frame compatibility

Hardwood, softwood, MDF, aluminium and steel

Warranty

10 years

Country of manufacture

United Kingdom

Sustainable sourcing

FSC® up to 70%

FSC® certified products available on request

Finishes

Request a quote

Customisation

Vision Panels

Choose from a range of FD30 approved vision panel designs, bespoke designs available on request.

V10

See all FD30 vision panels

Frames

Profile: integral stop / loose stop / rebated / shadow gap

Delivery options: Available assembled, unassembled or pre-assembled and disassembled for transport purposes.

2-part timber shadow-gap doorframe

3-part timber doorframe

4-part timber doorframe

5-part split doorframe

Double action doorframe

Concealed doorframe

See all frames

Elevations

All FD30 door leaves are available with overhead overpanel or fanlights and/or sidelights, choose from any of the options below.

Double door

Double door with glazed side panel

Double door with glazed overpanel

Double door with overpanel

Ironmongery

Choose from one of the widest ranges of suitable ironmongery in the industry, all certified and approved for use with timber FD30 doors & frames.

Ironmongery compatibility check & guidance: we will check whether your ironmongery is compliant and advise if you need to make a change to your design.

Milling service: we offer machine-finished precise milling for all your locks, hinges, closers and more, be sure to include it in your quote request.

Concealed hinge

Central pivot closer

Concealed closer

Mortice locks

Cable way & lead cover

See more ironmongery

Designed for internal use, this product is approved under the IFC Field of Application report PAR/10321/01 for installation within timber, aluminium, and steel frames. It is specifically suited for the UK interior fit-out construction industry.

Each Forza fire door is equipped with a unique IFCC label, providing a complete audit trail of its manufacture and certifying its fire integrity performance.

Vision panels are fitted with laminated glass to achieve FD30/0, FD30/30, and acoustic performance standards. Additional vision panel styles, including circular, Vistamatic, and rounded Slimline, are also available.

Popular Veneers & Finishes

Discover some of our most popular veneers and finishes, designed to suit every taste and enhance any space.

Niveus

Eucalyptus

Terracotta

F4161

American Black Walnut

Walnut

Albus

Ash

Artichoke

F0800

Reed Green

U599 PM

Piceus

Ash

Imber

Mulitilaminar (Oak)

Terra

Ash

Misty Blue

U502 ST9

Solid Cashmere Grey

U7021 ST9

Crown Cut Beech

Beech

Vesperi

Multilaminar (Poplar)

Aged Ash

F8844

Furvus

Ash

Alpino

F1040

White Elm

Elm

Browse all finishes

Get inspired

Discover endless possibilities in our design gallery, showcasing how quality materials and expert craftsmanship come together to create awesome spaces.

Ready to get started?

Get in touch today to discuss your project with our expert team.

Request a quote Discuss a project

FAQs

Get quick answers to the most commonly asked questions.

What are the minimum frame dimensions available with Forza FD30 door assemblies?

This may vary depending on the chosen ironmongery for the door assembly, however, the frame shall be always a minimum of 70mm depth by 32mm thick.

What type of structural wall can an FD30 Forza fire-rated door assembly be installed in?

The supporting construction may be timber stud & frame or steel stud, head & base track, plasterboard partition (with plasterboard on both faces of the stud), masonry wall or Forza timber framed glazed partition, but shall be of a type that has been tested or assessed to provide in excess of 30 minutes fire resistance, at the required size, when incorporating FD30 timber door assembly openings.

If fitted into a proprietary demountable and relocatable partition system providing in excess of 30 minutes of fire resistance, the method of forming the timber door assembly aperture must be as tested by the partition manufacturer.

The limitation of allowable elevations/leaf sizes and ironmongery as tested and specified by the partition manufacturer shall take total precedence over Forza data.

Can you cut aperture holes on a flush door leaf on-site?

Letterbox, door viewer, air transfer grills must be tested or otherwise approved for use with Forza fire-rated doors, they must be fitted fully in accordance with manufacturer instructions including all intumescent liners and cloaking grilles/beads.

Restrictions on the maximum size and placement of any aperture, in which must also be included in the total area permitted for apertures.

Note: the installation of such items in a door leaf may compromise its performance as a smoke control door assembly.

I need EN tested doors, are your doors EN tested?

At this moment Forza is only permitted to certify fire-rated door assemblies under BS 476: 22.

We are actively developing a scope of fire-rated products tested under EN 1634-1.

FD30 Permitted Leaf Sizes

Review permitted leaf sizes for FD30 doors and view or download the leaf size summary graph for each of the door configurations below.

FLUSH TIMBER (or MDF) FRAMES

Code LSASD Max HT 3225 Assoc W 921 Max W 1096 Assoc HT 2636
Code ULSASD Max HT 3162 Assoc W 903 Max W 1192 Assoc HT 2582
Code ULDASD Max HT 3162 Assoc W 903 Max W 1192 Assoc HT 2582
Code LSASD - o/p Max HT 2800 Assoc W 915 Max W 1140 Assoc HT 2135
Code ULSASD - o/p Max HT 2724 Assoc W 817 Max W 1089 Assoc HT 2179
Code ULDASD - o/p Max HT 3162 Assoc W 903 Max W 1192 Assoc HT 2582
Code LSADD Max HT 2926 Assoc W 975 Max W 1103 Assoc HT 2669
Code ULSADD Max HT 2897 Assoc W 965 Max W 1092 Assoc HT 2643
Code ULDADD Max HT 2897 Assoc W 965 Max W 1092 Assoc HT 2643
Code LSADD - o/p Max HT 2440 Assoc W 910 Max W 1040 Assoc HT 2135
Code ULSADD - o/p Max HT 2440 Assoc W 910 Max W 1040 Assoc HT 2135
Code ULDADD - o/p Max HT 2440 Assoc W 910 Max W 1030 Assoc HT 2135

Code	Max HT	Assoc W	Max W	Assoc HT
LSASD	3225	921	1096	2636
ULSASD	3162	903	1192	2582
ULDASD	3162	903	1192	2582
LSASD - o/p	2800	915	1140	2135
ULSASD - o/p	2724	817	1089	2179
ULDASD - o/p	3162	903	1192	2582
LSADD	2926	975	1103	2669
ULSADD	2897	965	1092	2643
ULDADD	2897	965	1092	2643
LSADD - o/p	2440	910	1040	2135
ULSADD - o/p	2440	910	1040	2135
ULDADD - o/p	2440	910	1030	2135

STEEL FRAMES

Code LSASD Max HT 2785 Assoc W 795 Max W 1061 Assoc HT 2253
Code ULSASD Max HT 2731 Assoc W 780 Max W 1041 Assoc HT 2209
Code LSADD Max HT 2425 Assoc W 816 Max W 961 Assoc HT 2135
Code ULSADD Max HT 2401 Assoc W 808 Max W 951 Assoc HT 2114

Code	Max HT	Assoc W	Max W	Assoc HT
LSASD	2785	795	1061	2253
ULSASD	2731	780	1041	2209
LSADD	2425	816	961	2135
ULSADD	2401	808	951	2114

REBATED TIMBER FRAMES

Code LSASD Max HT 3225 Assoc W 921 Max W 1215 Assoc HT 2636
Code ULSASD Max HT 3162 Assoc W 903 Max W 1192 Assoc HT 2582
Code LSASD - o/p Max HT 2800 Assoc W 915 Max W 1140 Assoc HT 2135
Code ULSASD - o/p Max HT 2724 Assoc W 817 Max W 1089 Assoc HT 2179
Code LSADD Max HT 2926 Assoc W 975 Max W 1103 Assoc HT 2669
Code ULSADD Max HT 2897 Assoc W 965 Max W 1092 Assoc HT 2643
Code LSADD - o/p Max HT 2440 Assoc W 910 Max W 1040 Assoc HT 2135
Code ULSADD - o/p Max HT 2440 Assoc W 910 Max W 1040 Assoc HT 2135

Code	Max HT	Assoc W	Max W	Assoc HT
LSASD	3225	921	1215	2636
ULSASD	3162	903	1192	2582
LSASD - o/p	2800	915	1140	2135
ULSASD - o/p	2724	817	1089	2179
LSADD	2926	975	1103	2669
ULSADD	2897	965	1092	2643
LSADD - o/p	2440	910	1040	2135
ULSADD - o/p	2440	910	1040	2135

ALUMINIUM FRAMES

Code LSASD Max HT 3035 Assoc W 812 Max W 984 Assoc HT 2691
Code ULSASD Max HT 2976 Assoc W 797 Max W 965 Assoc HT 2639
Code LSADD Max HT 2771 Assoc W 857 Max W 900 Assoc HT 2685
Code ULSADD Max HT 2743 Assoc W 848 Max W 891 Assoc HT 2658

Code	Max HT	Assoc W	Max W	Assoc HT
LSASD	3035	812	984	2691
ULSASD	2976	797	965	2639
LSADD	2771	857	900	2685
ULSADD	2743	848	891	2658

FD30 Fire & Sound Max Permitted Leaf Sizes

Review permitted leaf sizes for fire & sound FD30 doors and view or download the leaf size summary graph for each configuration.

FD30 Flush Softwood Frames

Code LSASD Max HT 3055 Assoc W 884 Max W 1206 Assoc HT 2412
Code LSASD - o/p Max HT 3011 Assoc W 871 Max W 1188 Assoc HT 2376
Code ULSASD Max HT 2996 Assoc W 866 Max W 1182 Assoc HT 2365
Code ULSASD - o/p Max HT 2952 Assoc W 854 Max W 1165 Assoc HT 2330

Code	Max HT	Assoc W	Max W	Assoc HT
LSASD	3055	884	1206	2412
LSASD - o/p	3011	871	1188	2376
ULSASD	2996	866	1182	2365
ULSASD - o/p	2952	854	1165	2330

FD30 Flush Hardwood Frames

Code LSASD Max HT 3501 Assoc W 1013 Max W 1381 Assoc HT 2763
Code LSASD - op Max HT 3450 Assoc W 998 Max W 1361 Assoc HT 2723
Code ULSASD Max HT 3433 Assoc W 993 Max W 1355 Assoc HT 2710
Code ULSASD - op Max HT 3383 Assoc W 978 Max W 1335 Assoc HT 2670
Code DASD Max HT 3308 Assoc W 1017 Max W 1336 Assoc HT 2672
Code LSADD Max HT 3172 Assoc W 1073 Max W 1264 Assoc HT 2790
Code LSADD - o/p Max HT 3081 Assoc W 1042 Max W 1228 Assoc HT 2709
Code ULSADD Max HT 3141 Assoc W 1062 Max W 1252 Assoc HT 2762
Code ULSADD - op Max HT 3051 Assoc W 1032 Max W 1216 Assoc HT 2683

Code	Max HT	Assoc W	Max W	Assoc HT
LSASD	3501	1013	1381	2763
LSASD - op	3450	998	1361	2723
ULSASD	3433	993	1355	2710
ULSASD - op	3383	978	1335	2670
DASD	3308	1017	1336	2672
LSADD	3172	1073	1264	2790
LSADD - o/p	3081	1042	1228	2709
ULSADD	3141	1062	1252	2762
ULSADD - op	3051	1032	1216	2683

See all documents & downloads

Technical Guides

Read our useful technical guides for FD30 doors & frames.

FD30Doors & FramesTechnical GuideFD30 Timber Doorframes FD30Doors & FramesTechnical GuideFD30 MDF Doorframes Technical GuideFireFireFD30 Intumescent Seal Specification Technical GuideFD30Doors & FramesFD30 Max Permitted Leaf Size Summary Technical GuideInstallationFD30FD30 & FD60 Ironmongery Suitability & Installation Guide Technical GuideFD30Doors & FramesFD30 Fire & Sound Max Permitted Leaf Size Summary

See all FD30 guides

Related Products

Explore more from our range of bespoke timber joinery.

Bespoke joineryBeautifully integrated timber schemes and matched components.

ScreensFire and non-fire rated screens with a range of designs.

PartitionsInnovative partitions with outstanding acoustic & structural performance.

WashroomsStunning visual continuity for commercial washroom spaces.

When you need quality and attention to detail, you need the right partners. Work with the best and the results speak for themselves. Great work and thanks for your support as always!

Steve Potter Owner, Form
Forza were selected as we have established a trusted relationship with them on our previous projects, based on their customer service and exceptional quality. We couldn’t be more proud of the end result, and to work with a fantastic forward thinking client.

Paul McArdle Director & Co-Founder, Imago Interiors
The craftsmanship of [Forza’s] timber doors is second to none, and the level of detail and precision made the installation process effortless and reinforced why we chose them.

Liam Greenhow Commercial Manager, Form
Forza's service and quality went above and beyond our expectations. After having trouble with another door manufacturer we approached Forza Doors and explained we had 8 weeks left on programme. The next day their Sales Manager was in my office and within 3 days all designs and door schedules were complete. Five weeks later all 43 bespoke doors were on site.

Paddy Tupper Project Manager, LG Building

Ready to get started?

Get in touch to request a quote or discuss a project.

Discuss a project Request a quote

Discover our recent projects

Important documents & specifications

FD30 Fire Doors & Frames

FD30 Fire Doors

Technical Specifications

Customisation

Technical Specifications

Customisation

Popular Veneers & Finishes

Niveus

Terracotta

American Black Walnut

Albus

Artichoke

Reed Green

Piceus

Imber

Terra

Misty Blue

Solid Cashmere Grey

Crown Cut Beech

Vesperi

Aged Ash

Furvus

Alpino

White Elm

Get inspired

FAQs

FD30 Permitted Leaf Sizes

FD30 Fire & Sound Max Permitted Leaf Sizes

Technical Guides

Related Products
